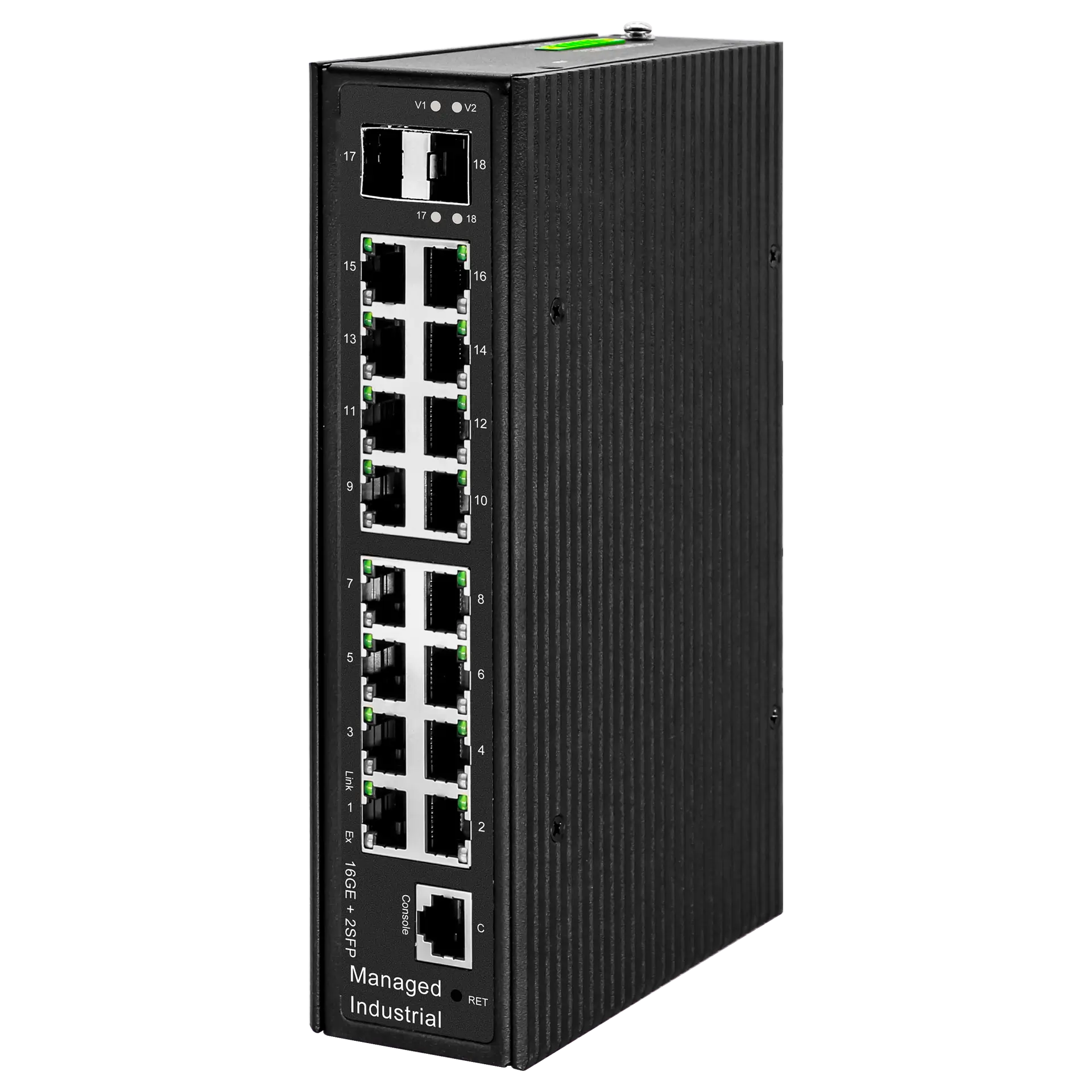

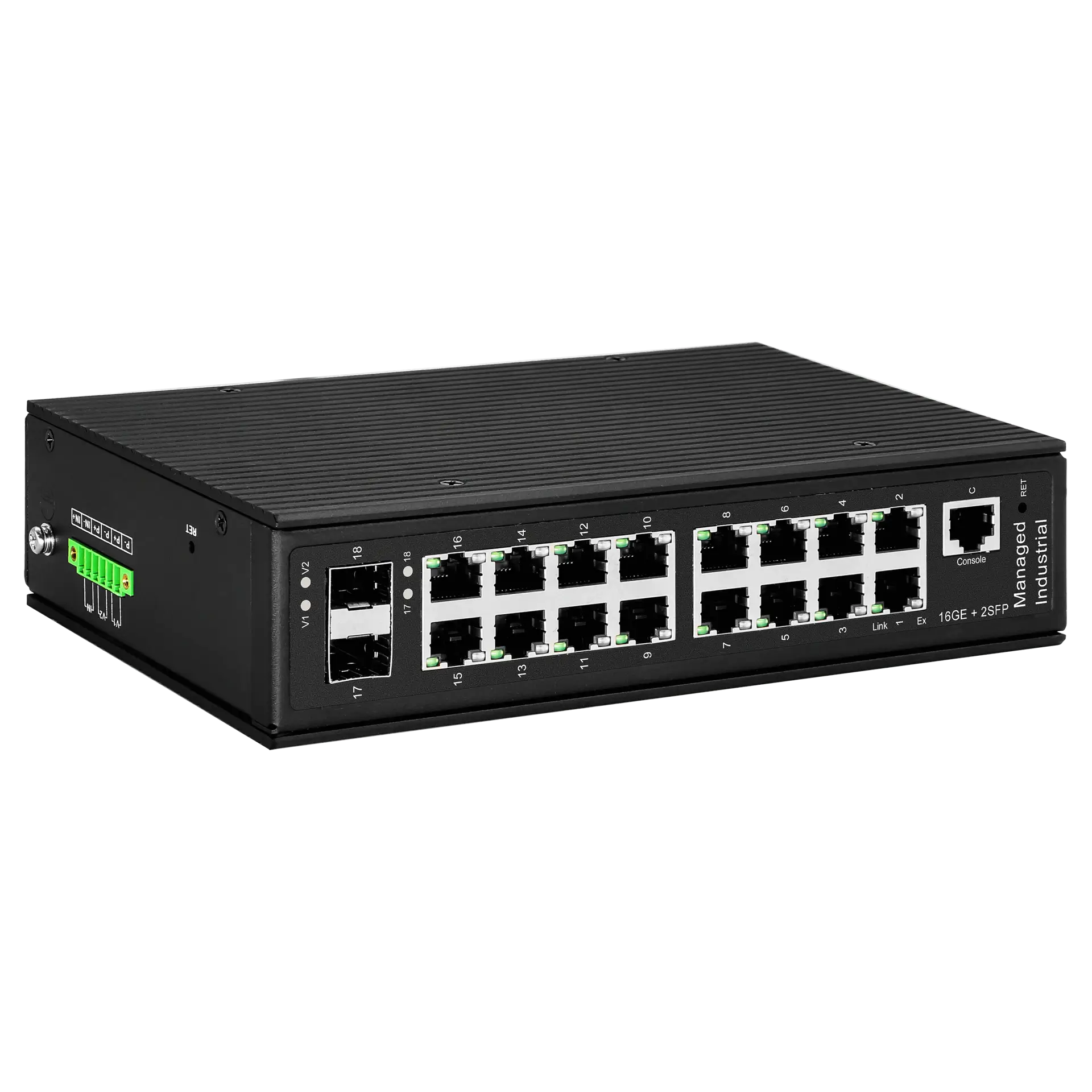

Port

16x10/100/1000Mbps RJ45

2x100/1000Mbps SFP

Managing ports

1 console port

Reset key

1

Power input

Redundancy supports 2 sets of independent power inputs

non-POE: DC 12-57V MAX 2A

Network Protocols

IEEE 802.3x

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z

IEEE 802.3ad

IEEE 802.3q, IEEE 802.3q/p

IEEE 802.1w, IEEE 802.1d, IEEE 802.1S

IEEE 802.3z 1000BASE-X

STP(Spanning Tree Protocol)

RSTP/MSTP( Rapid Spanning Tree Protocol)

EPPS ring network protocol

EAPS ring network protocol

Network Port Characteristics

1-16 10/100/1000BaseT(X) Automatic detection, full/half duplex MDI/MDI-X adaptive

Forwarding Mode

store and forward (full line speed)

Bandwidth

56Gbps (No blocking)

Packet Forwarding

41.664Mpps

MAC Address Table

8K

Cache

4.1 Mbit SRAM Packet Buffer

Jumbo Frames

10000Bytes

Twisted Pair Transmission

10BASE-T: Cat3,4,5 UTP(≤250 meter)

100BASE-TX: Cat5 or later UTP(≤100 meter)

1000BASE-TX: Cat6 or later UTP(≤100 meter)

SFP: Support 100M/1G/10G single-mode multi-mode optical module, the maximum distance ≤120km (depending on the optical module).

FLASH

16M

RAM

128M

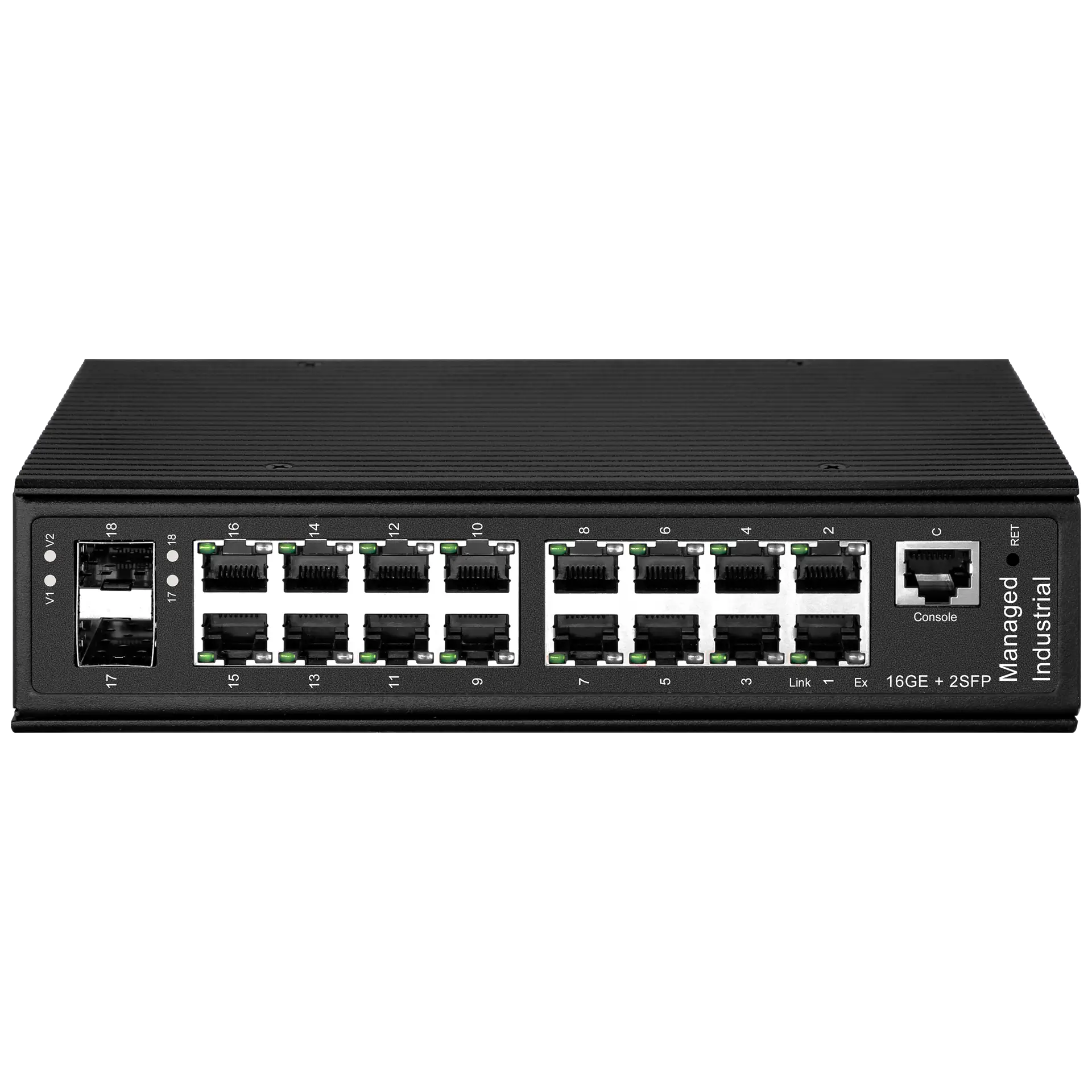

LED Indicator

17-18: optical port link LED

1-16 Port RJ45 left: 1000M link LED (orange)

RJ45 right: Link LED (green)

V1:Mains power indicator

V2:Secondary power indicator

Power Consumption

No-load power consumption≤3W

Usage Environment

operation temperature: -40℃～75℃

storage temperature: -40℃～80℃

Working humidity: 10%～90%, RH Non coagulation

Storage Humidity: 5%～90%, RH Non coagulation

Lightning Protection Level

Port lightning protection：6KV 8/20us；8KV ESD Electrostatic protection

Class of protection: IP40

Size(LxWxH)

Product size: 207mm*131mm*50mm

Packaging size: 280mm*166mm*79mm

N.W/G.W (kg)

1.45kg/1.62kg

Installation

DIN rail type (separate wall mounting ear)

Warranty

Whole device for 1 year(Accessories not included)
