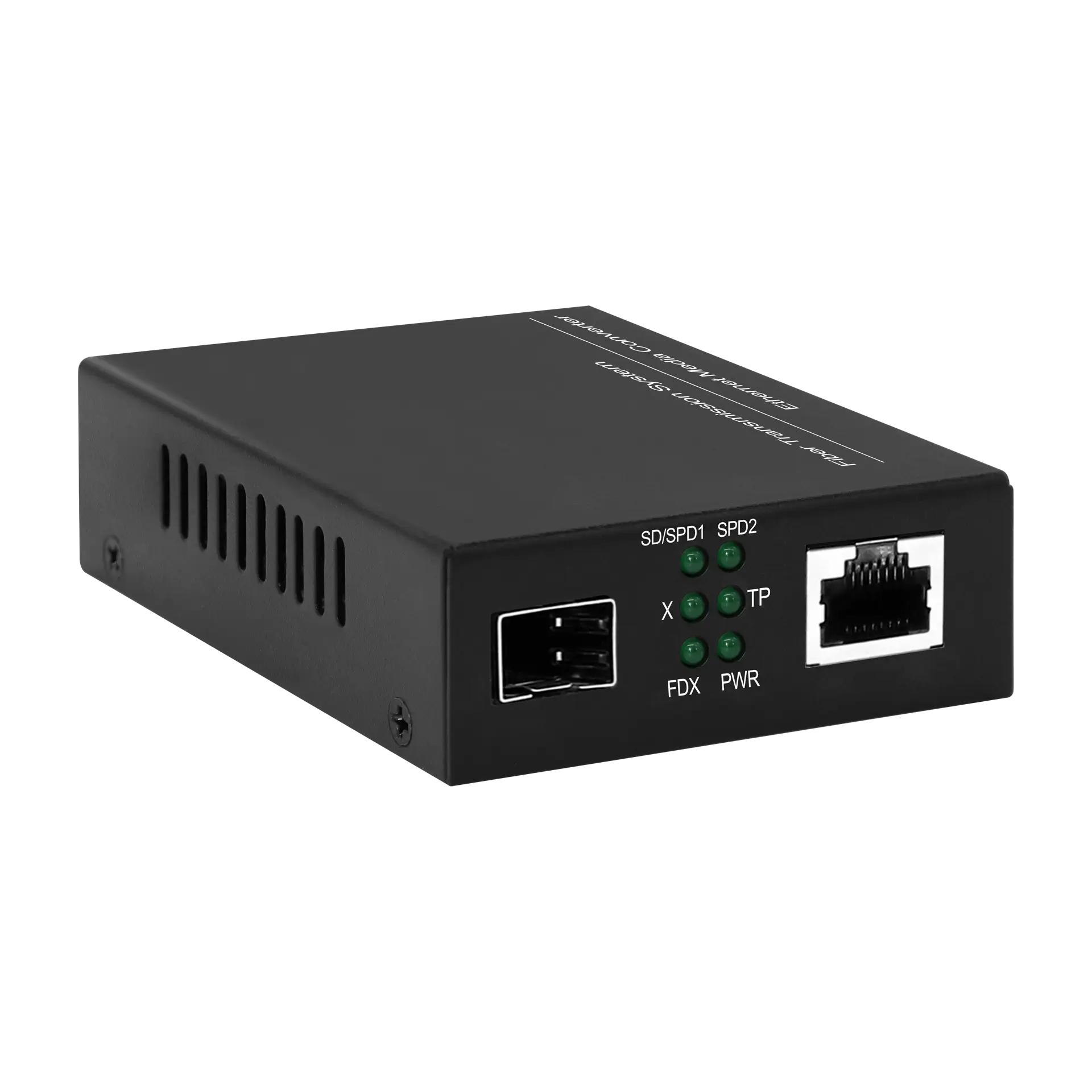

Fixed Port

1x10/100/1000M RJ45 port

1x1G SFP

PoE Ports

1 port supports IEEE802.3af/at,Max 30W/port

PoE Power Polarity

af/at: 12+ 36-

Total PoE Power

Max 30W

Network Protocol

IEEE 802.3 Medium Access Control Protocol for Ethernet

IEEE 802.3i 10BASE-T Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.3ab 1000BASE-T Gigabit Ethernet

Network Port Characteristics

10/100/1000BaseT(X) auto-detection, full/half duplex MDI/MDI-X adaptive

Transmission Mode

Store and Forward(full wirespeed)

Bandwidth

2Gbps

Packet Forwarding

2.98Mpps

MAC Address

2K

Buffer

2.5M

Transmission Distance

10BASE-T： Cat3,4,5 UTP(≤250m)

100BASE-T： Cat5 or later UTP(≤150m)

1000BASE-T： Cat6 or later UTP(≤150m)

SFP: Support 100/1000M single-mode multi-mode optical module, maximum distance ≤ 120km (depending on the optical module )

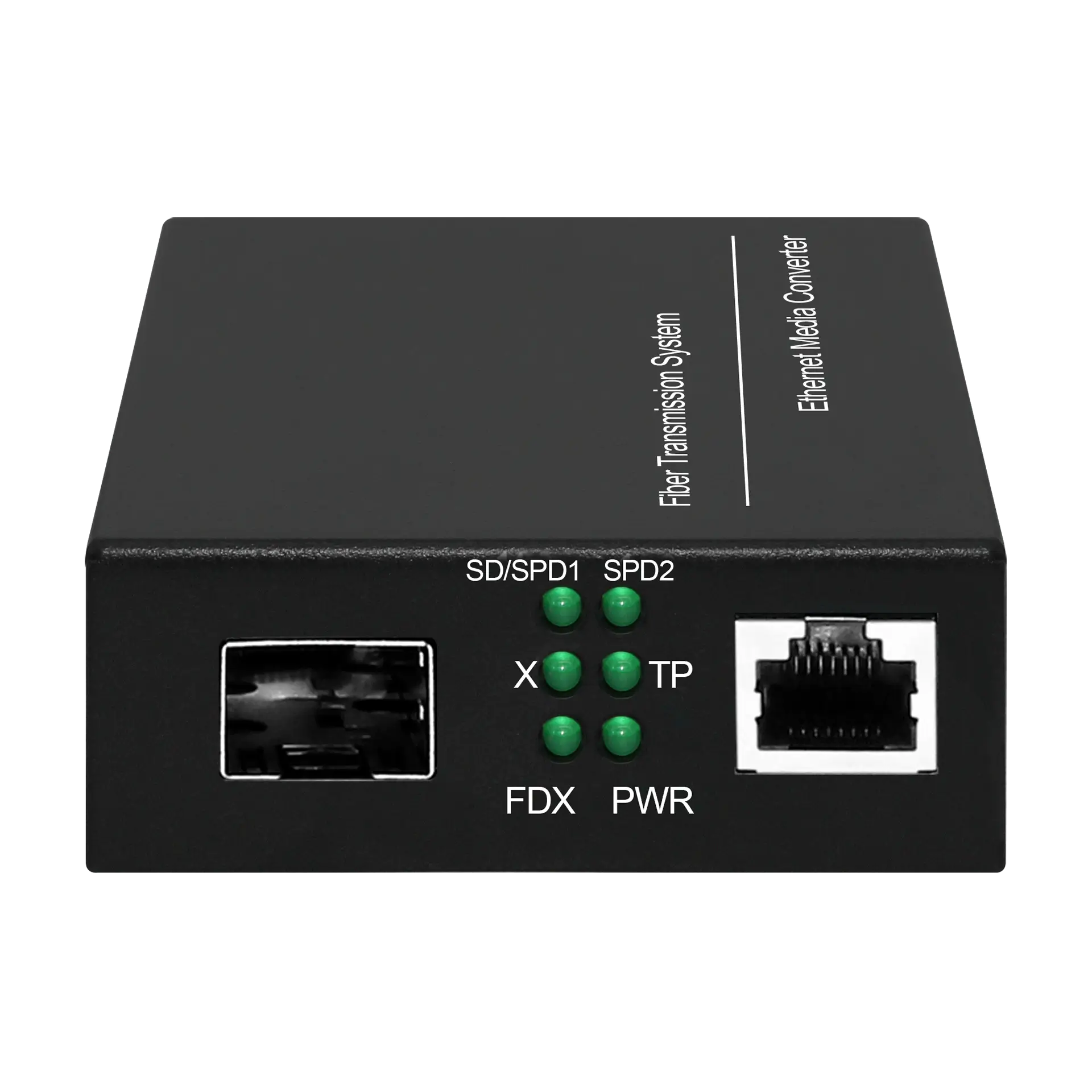

LED Indicator

PWR: Power indicator (Power overload LED)

SD/SPD1/FX: Fiber Optic Connection LED

SPD2/TP: Network Connection LED

FDX:POE LED

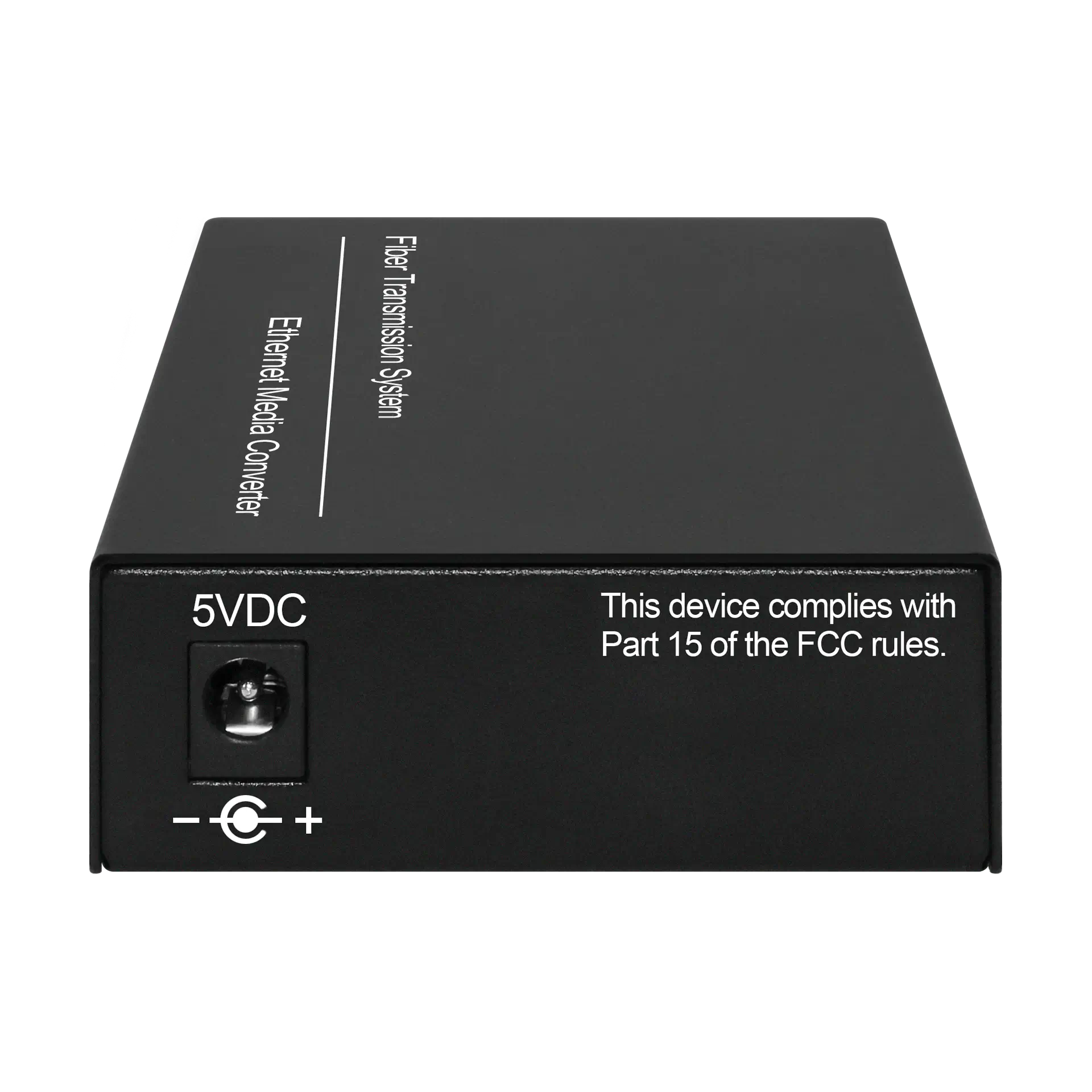

Input method

External power supply DC: 52V 600MA 31W max.

(100-240Vac 50/60Hz 0.4A)

Operation Environment

Operating temperature: -10℃～55℃;

Storage temperature: -40℃ ~ 75℃;

Operating humidity: 5% ~ 90% RH non-condensing

Storage humidity: 5% ~ 95% RH non-condensing

Size(L*W*H)

Product size: 93x69x25mm

Package size: 205x135x95mm

N.W/G.W(kg)

0.2kg/0.8kg

Installation

Desktop

Lightning protection level

3KV 8/20us;

IP30

Certificate

CE mark, commercial; CE/LVD EN60950;
FCC Part 15 Class B; RoHS;

Warranty

Whole device for 1 year(Accessories not included）
