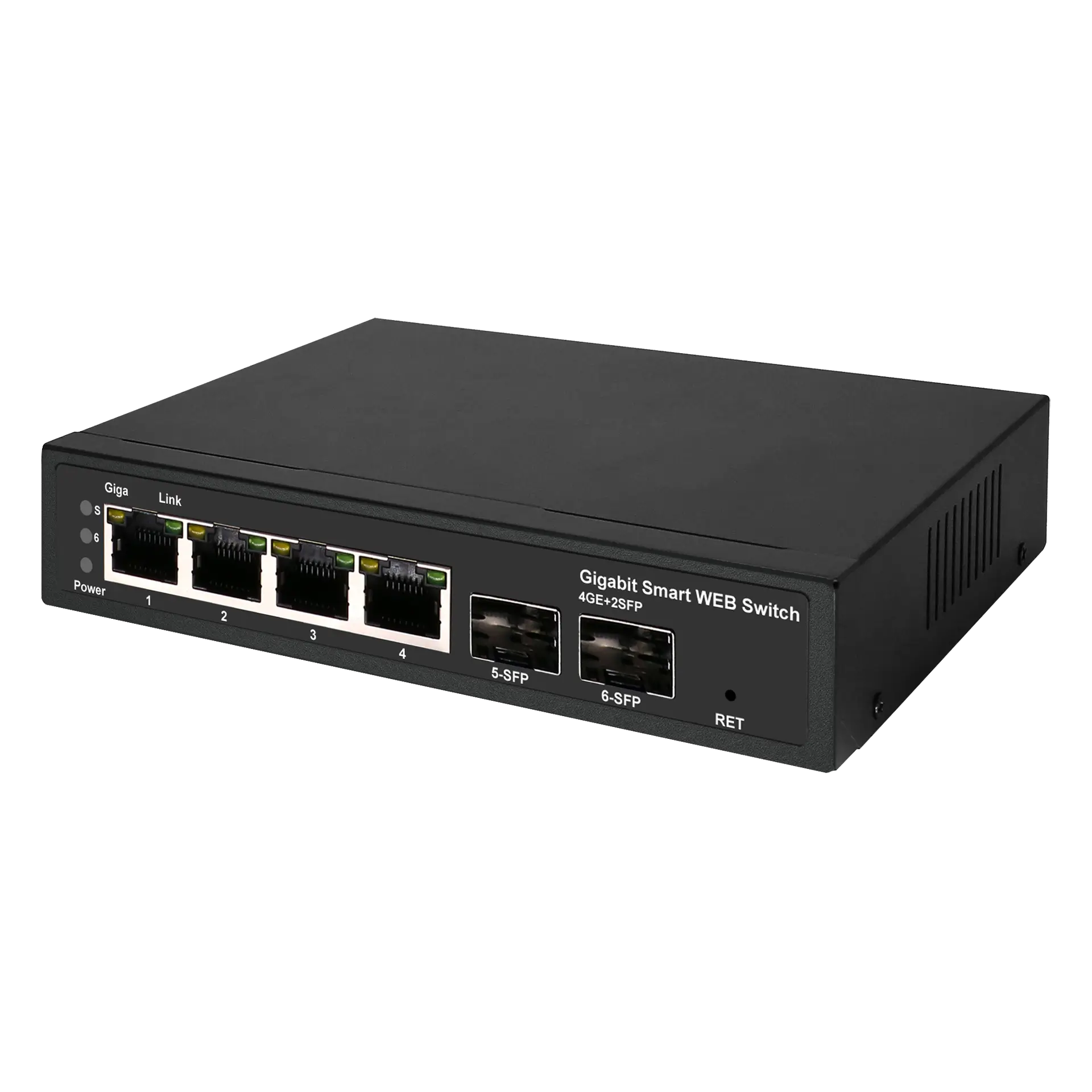

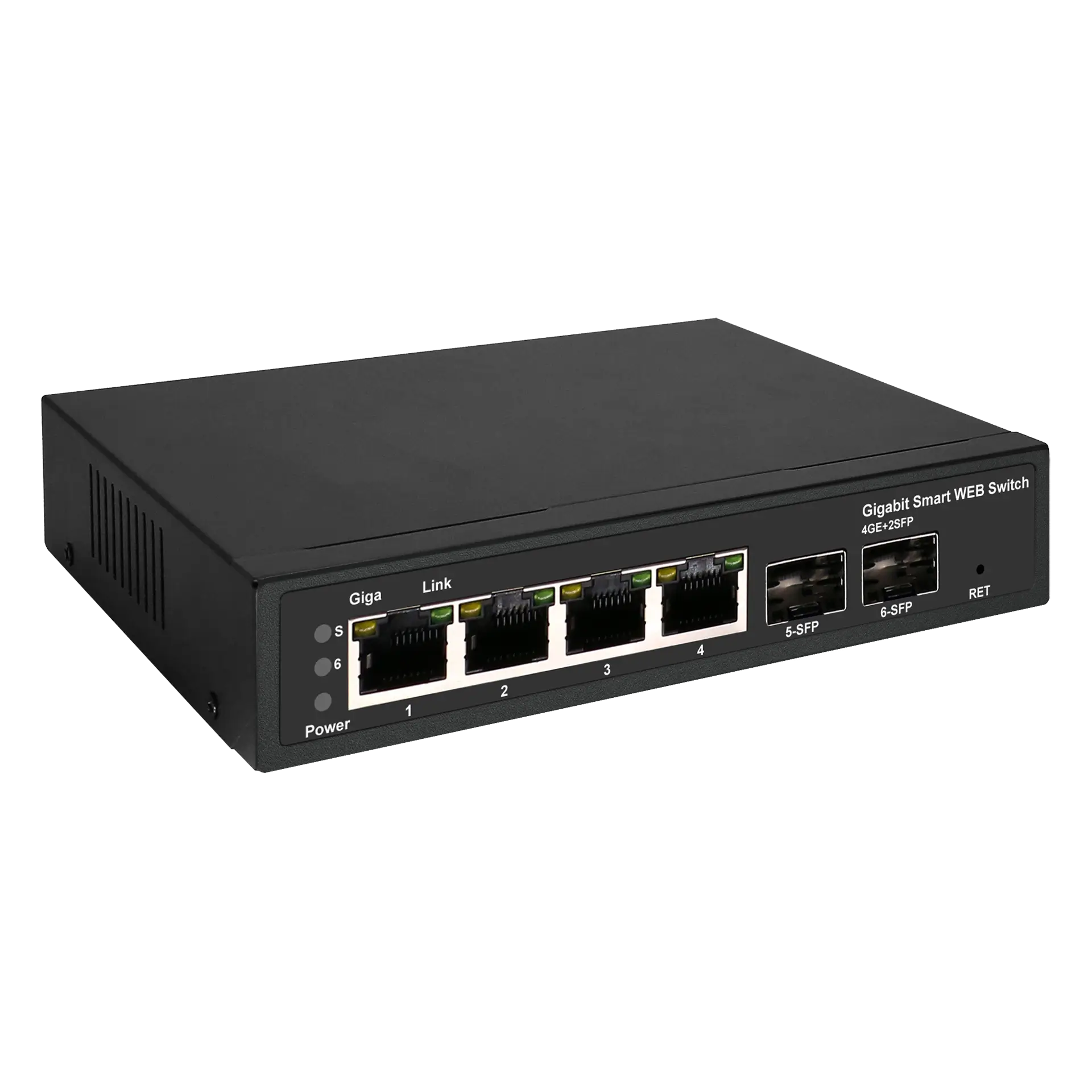

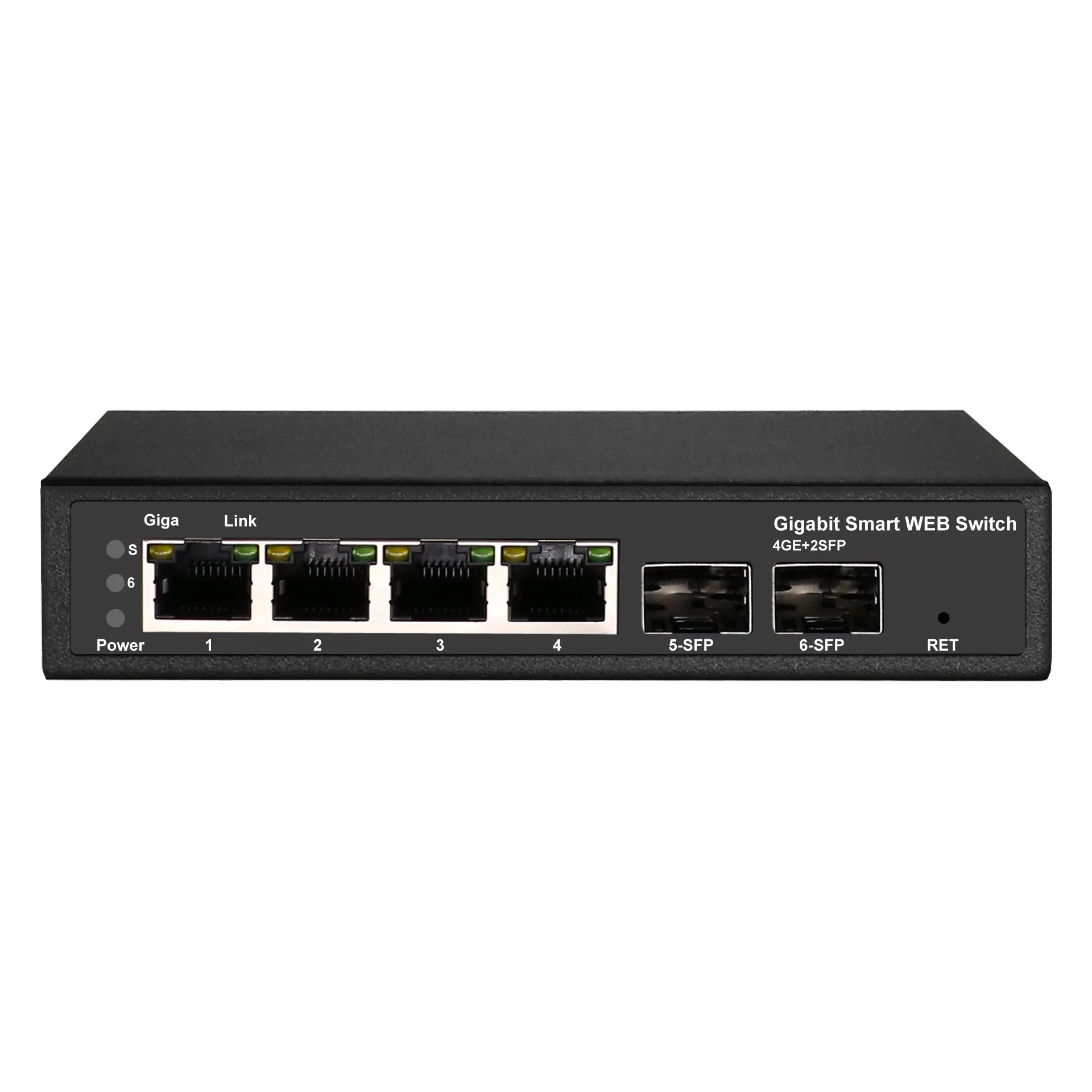

Port

4x10/100/1000Mbps RJ45 port

2x1G SFP Optical port

Reset key

1

performance

store and forward

Bandwidth

12Gbps

Packet Forwarding

8.92Mpps

Network Standards

IEEE802.3, IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x

Network port characteristics

10/100/1000BaseT(X) Automatic detection, full/half duplex MDI/MDI-X adaptive

Forwarding mode

store and forward (full line speed)

Transmission Distance

10BASE-T:Cat3,4,5 UTP(≤250m)

100BASE-T:Cat5 or later UTP(≤150m)

1000BASE-T:Cat6 or later UTP(≤150m)

SFP：Support 100/1000M single-mode multi-mode optical module, the maximum distance ≤120km (depending on the optical module).

LED Indicator

PWR:Power LED (green)

RJ45 Left: 1000M link LED (orange)

Right: link LED (green)

5-6:Optical port connection indicator (green)

No-load power consumption

≤3W

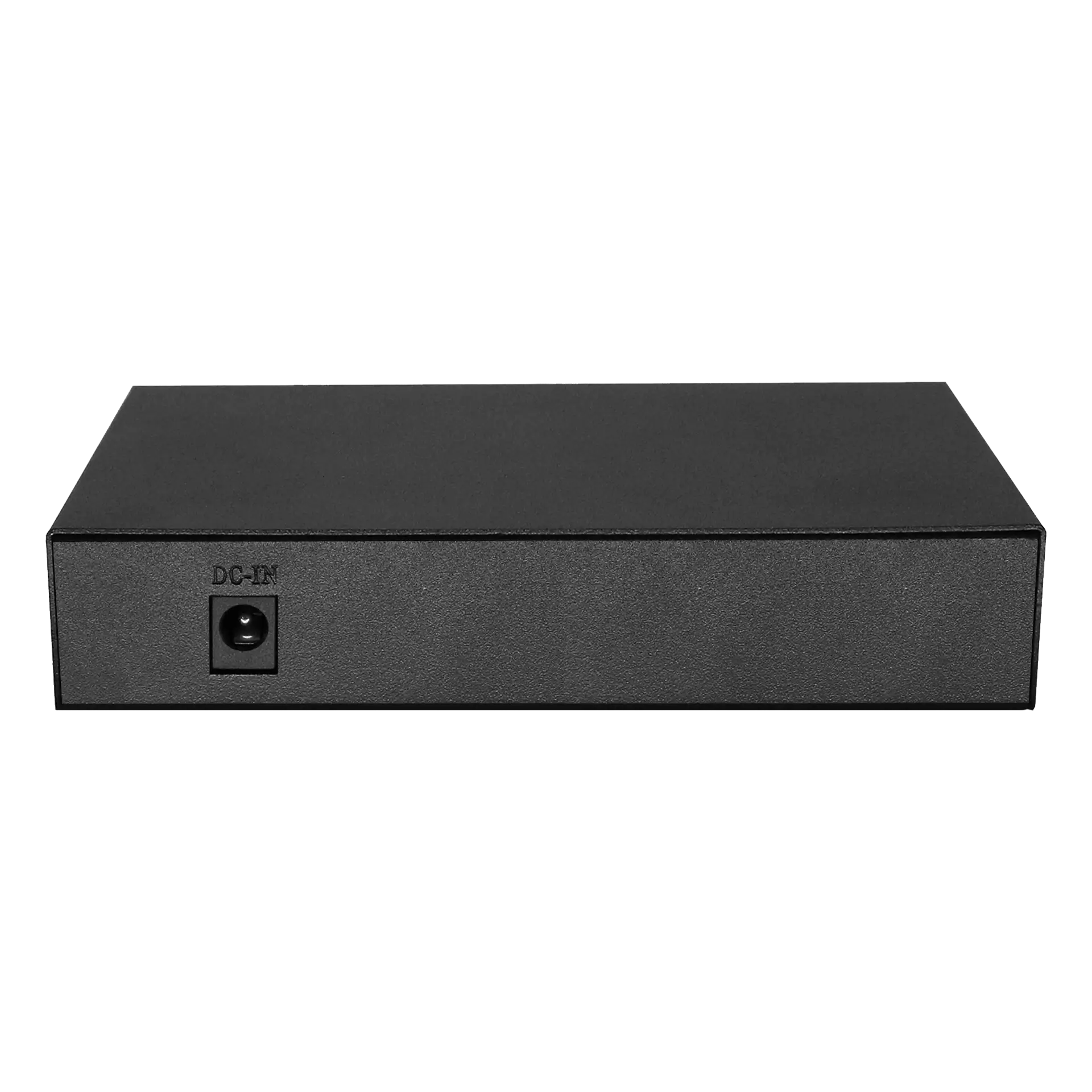

Input method

DC12V 0.5A (5.5*2.1mm)

Operation Environment

operation temperature: -10℃～55℃

storage temperature: -40℃～75℃

Working humidity: 10%～90%, RH Non coagulation

Storage Humidity: 5%～90%, RH Non coagulation

Size (LxWxH)

Product size:140x80x28mm

Packaging size:197x170x40mm

N.W/G.W (kg)

0.26kg/0.44kg

Installation

Desktop/Rack (optional)

Lightning

Protection Level

Port lightning protection: 6KV 8/20us;

Class of protection: IP30

Warranty

Whole device for 1 year(Accessories not included)

Software

System Management

Supports management through WEB pages

Supports static IP/DHCP

Support SNTP time server

Support User/password change

Supports MAC address customization

Port Configuration

Support port opening/closing

Supports port flow control

Supports port rate control

Supports port user-defined description

VLAN

Support 802.1Q VLAN、MTU VLAN、port VLAN

Disposition

QoS supports 8 port queues

Support loop detection/spanning tree/RSTP/STP

Support IGMP listening

Support DHCP listening

Support static link aggregation

Support port mirroring

Support port isolation

Support bandwidth control

Support macro frames

Support EEE

Security

Support MAC binding

Support MAC blocking

Support storm control

Monitoring

Support port statistics

System Tool

Support firmware upgrade

Support configuration saving

Support configuration backup and recovery

Support software reset

Support system restart and software reset

Support manual/scheduled system restarts
