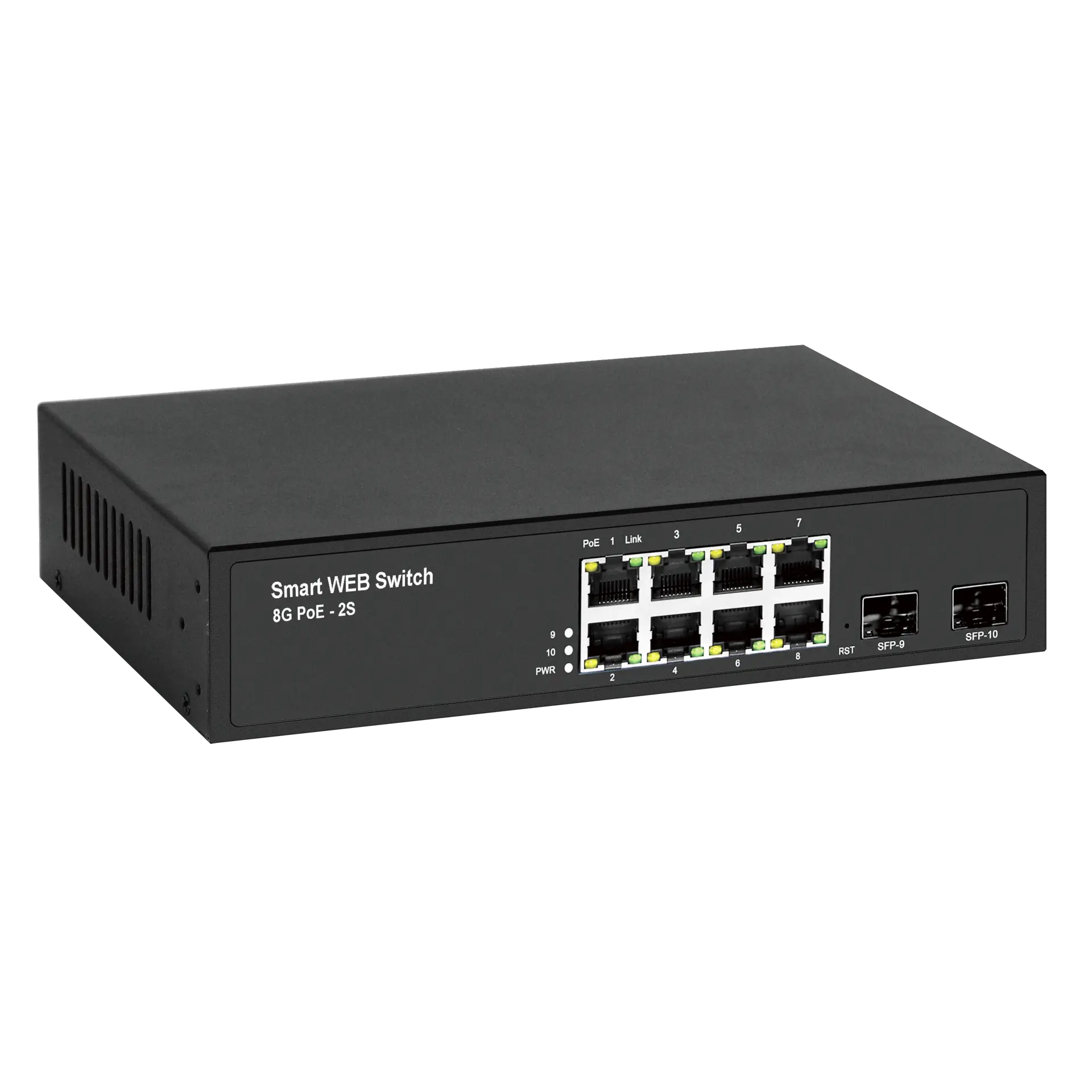

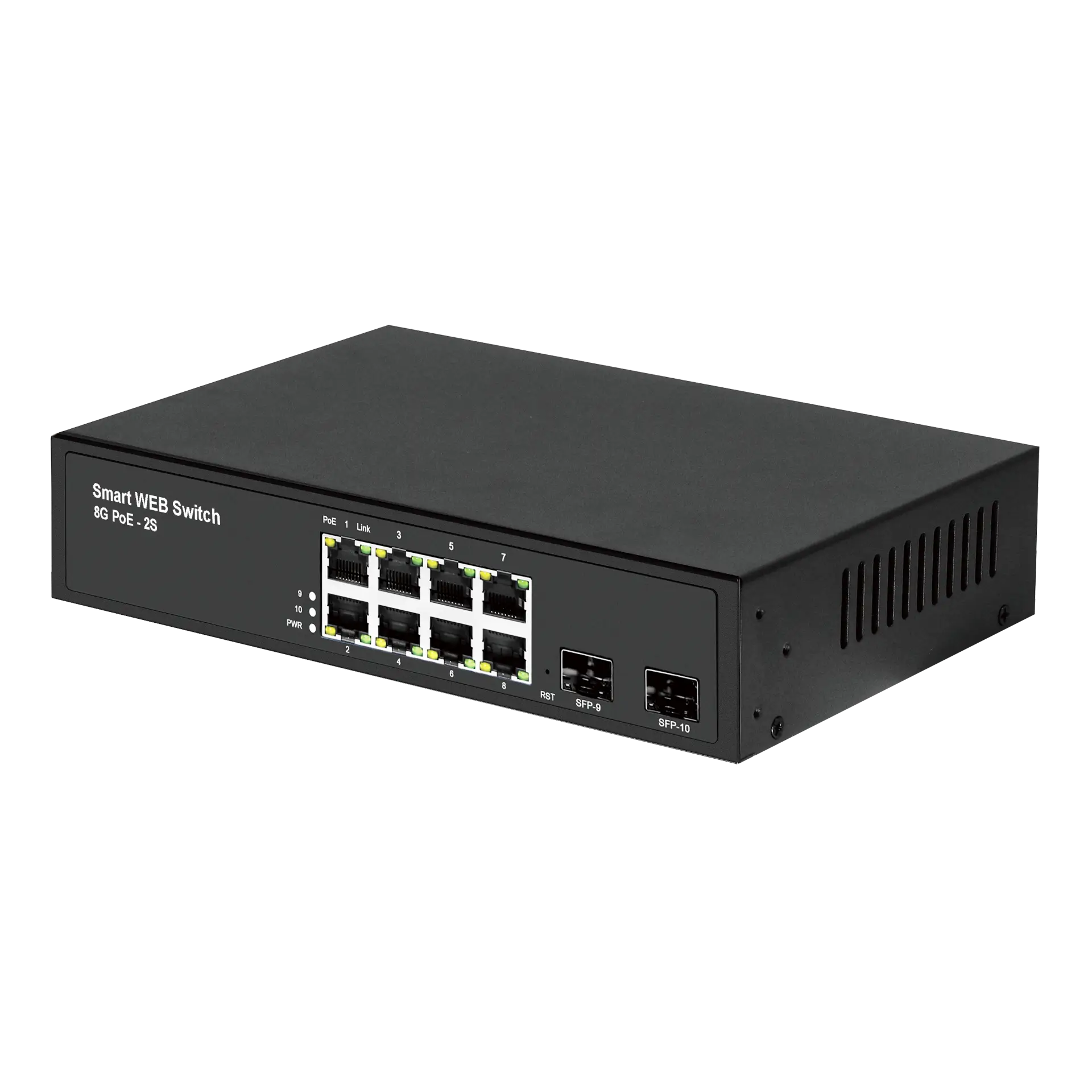

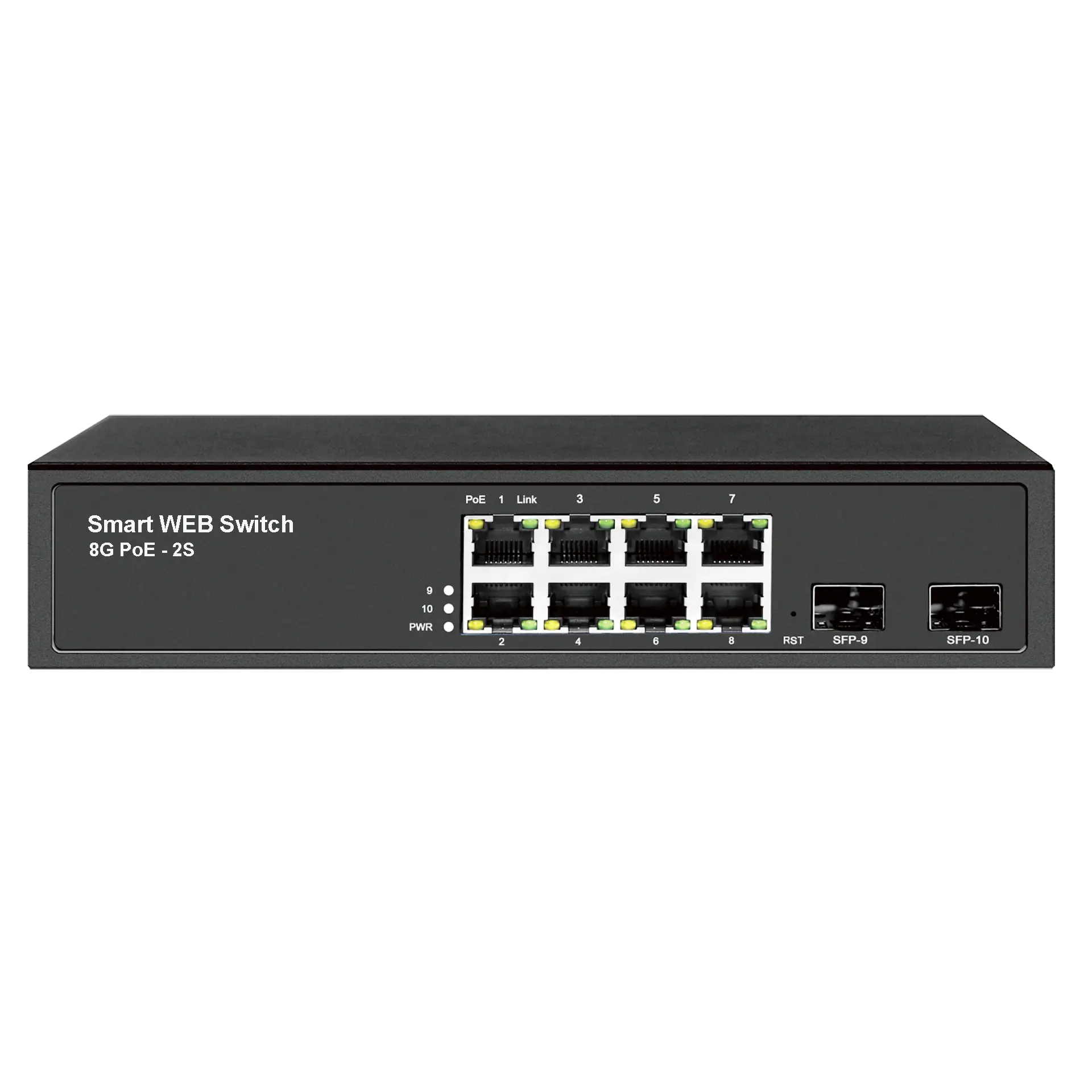

Port

8x10/100/1000Mbps RJ45

2x1G SFP

Reset key

1

PoE Port

1 port: IEEE802.3af/at/bt 90W MAX

2-8 port: IEEE802.3af/at 30W MAX

Performance

store and forward

Bandwidth

20Gbps

Packet Forwarding

14.88Mpps

Network standards

IEEE802.3, IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x

Network port characteristics

10/100/1000BaseT(X) Automatic detection，full/half duplex MDI/MDI-X adaptive

Forwarding mode

store and forward (full line speed)

Transmission Distance

10BASE-T: Cat3,4,5 UTP(≤250m)

100BASE-T: Cat5 or later UTP(≤150m)

1000BASE-T: Cat6 or later UTP(≤150m)

SFP: Support 100/1000M single-mode multi-mode optical module, the maximum distance ≤120km (depending on the optical module).

LED Indicator

PWR:Power Indicator/System Signal Indicator (green)

RJ45 left: PoE LED (orange)

right: link LED (green)

9-10: Optical port connection indicator

No-load power consumption

≤3W

Input method

100-240Vac 50/60Hz 1.8A 150W /Redundant DC connectors (5.5x2.5mm)

Usage environment

operation temperature: -10℃～55℃

storage temperature: -40℃～75℃

Working humidity: 10%～90%, RH Non coagulation

Storage Humidity: 5%～90%, RH Non coagulation

Size(LxWxH)

Product size: 206x140x45mm

Packaging size: 265x220x68mm

N.W/G.W (kg)

0.96kg/1.34kg

Installation

Desktop/Rack (optional)

Lightning

Protection  level

Port lightning protection: 6KV 8/20us;

Class of protection: IP30

Warranty

Whole device for 1 year(Accessories not included)

Software

System management

Supports management through WEB pages

Supports static IP/DHCP

Support SNTP time server

Support User/password change

Supports MAC address customization

Port configuration

Support port opening/closing

Supports port flow control

Supports port rate control

Supports port user-defined description

PoE port

(PoE port series only)

Support PoE port on/off

Support PoE power control

Support PoE watchdog

VLAN

Support 802.1Q VLAN, MTU VLAN, port VLAN

Disposition

QoS supports 8 port queues

Support loop detection/spanning tree/RSTP/STP

Support IGMP listening

Support DHCP listening

Support static link aggregation

Support port mirroring

Support port isolation

Support bandwidth control

Support macro frames

Support EEE

security

Support MAC binding

Support MAC blocking

Support storm control

monitoring

Support port statistics

System tool

Support firmware upgrade

Support configuration saving

Support configuration backup and recovery

Support software reset

Support system restart and software reset

Support manual/scheduled system restarts
