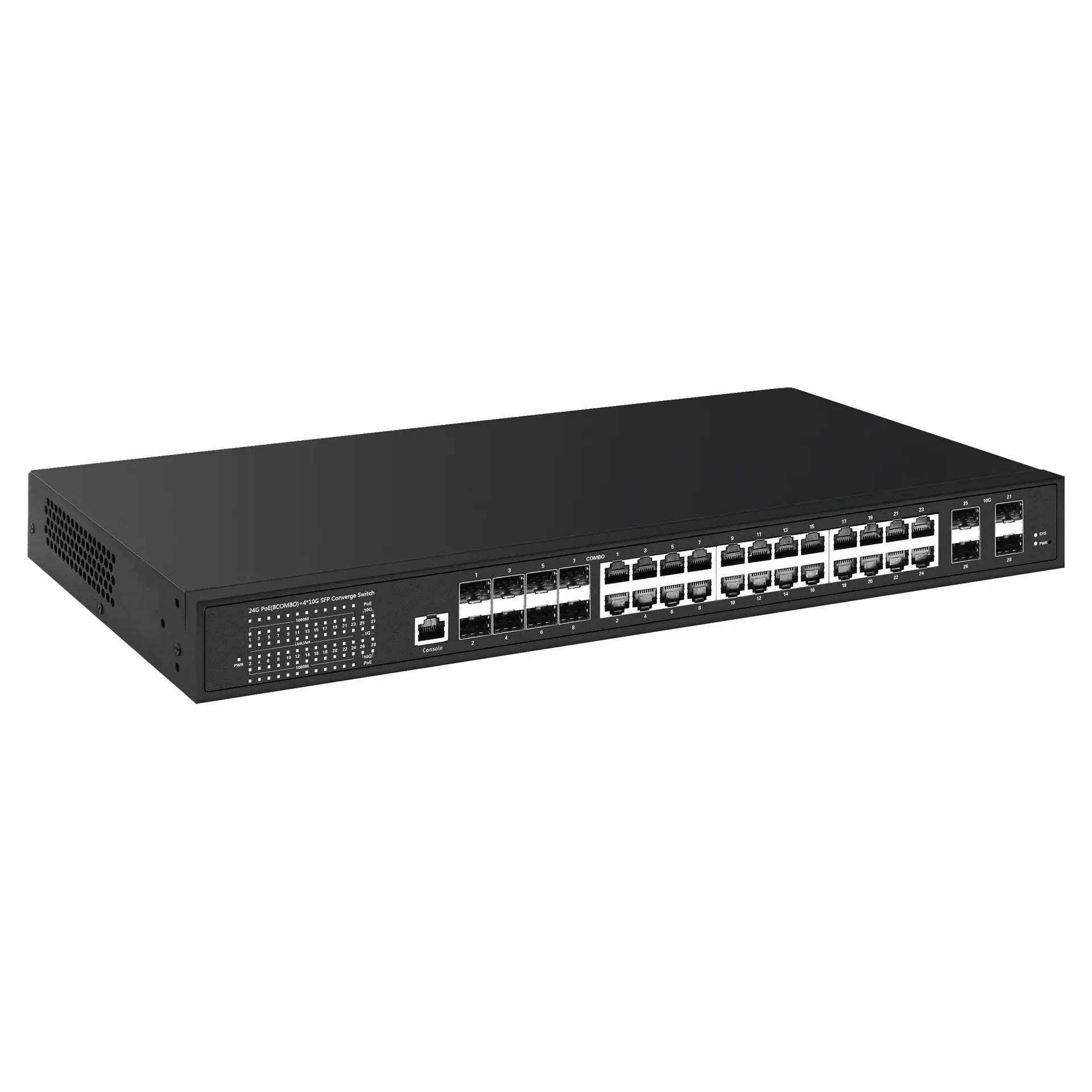

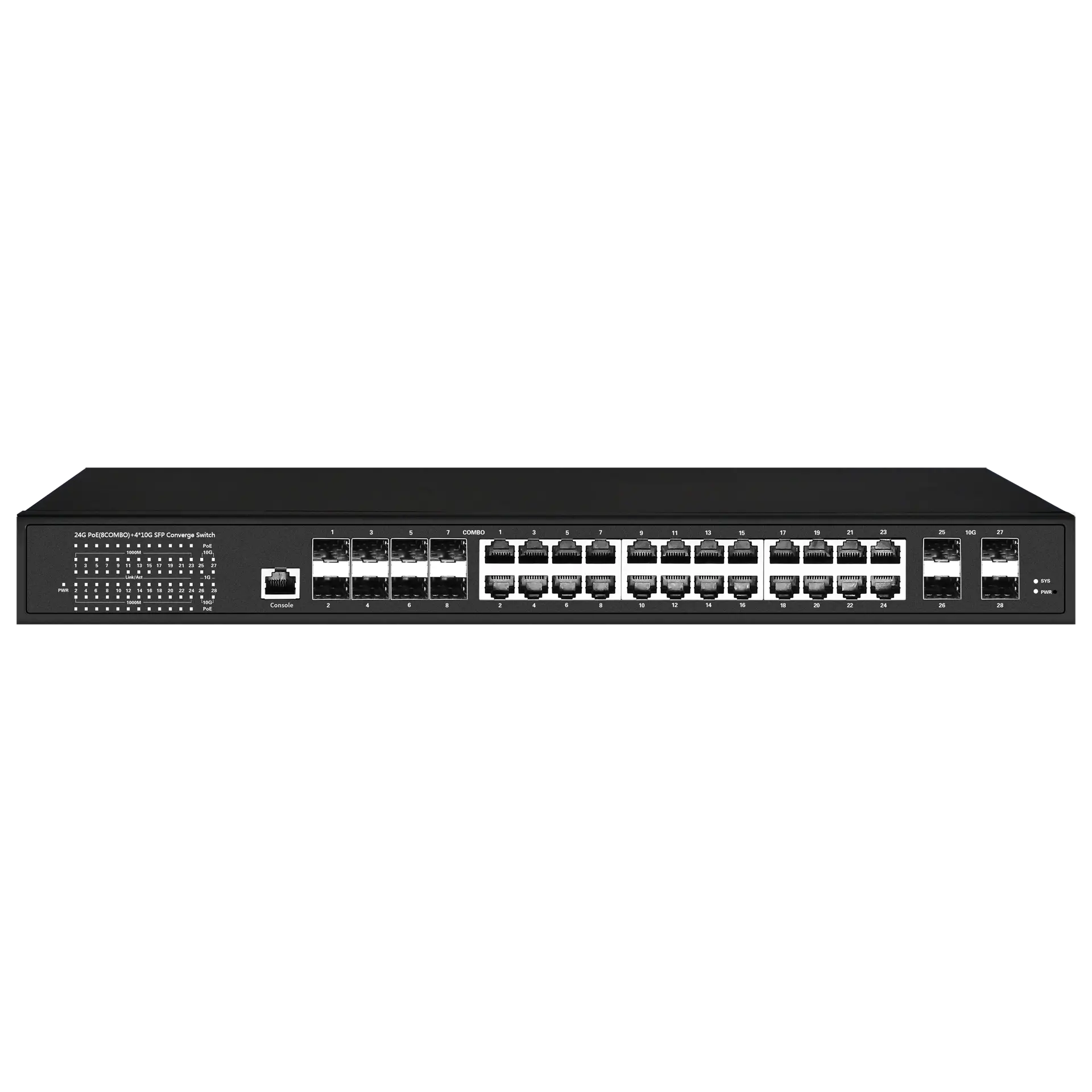

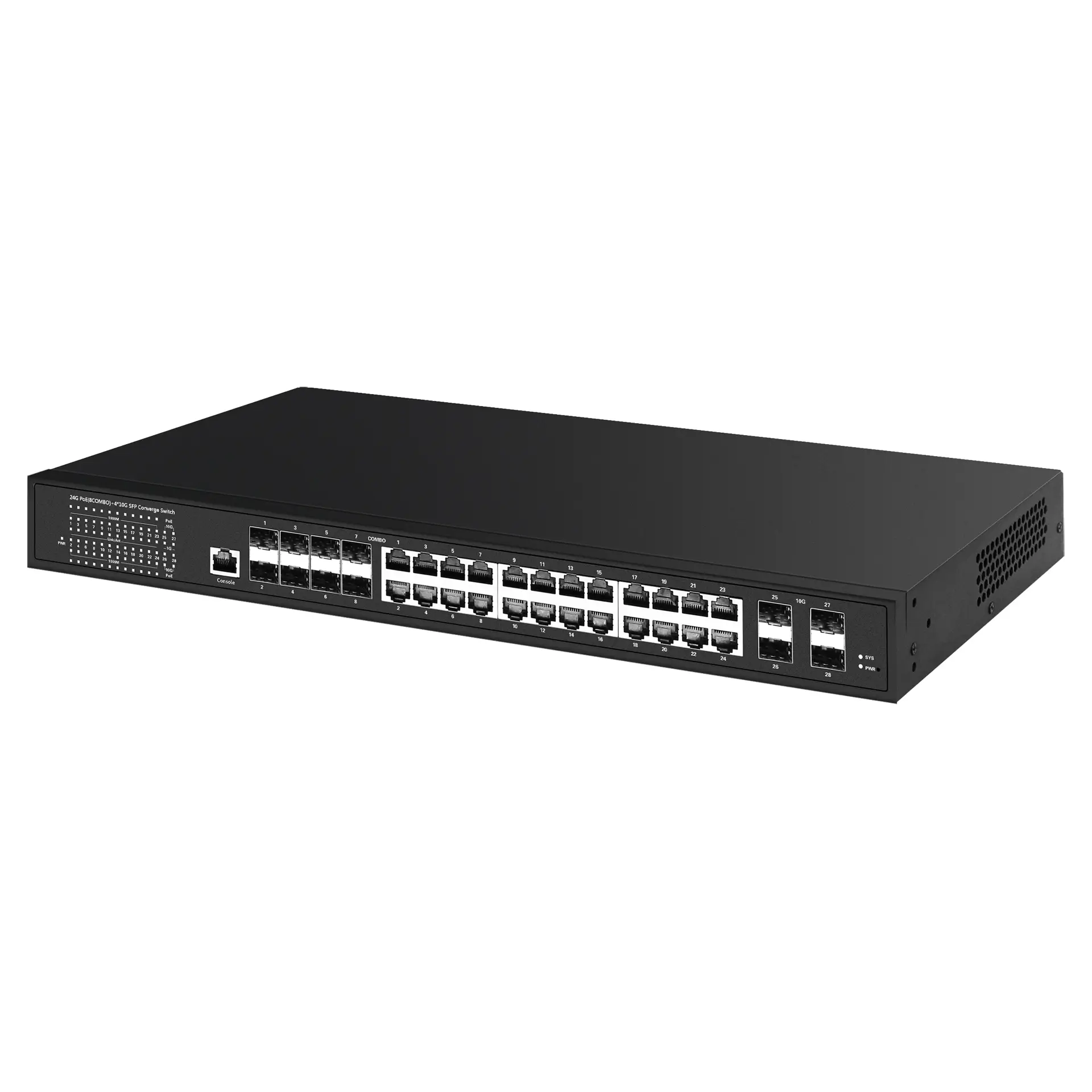

Fixed Port

16x10/100/1000M RJ45 PoE

8x10/100/1000M RJ45(COMBO)

8x100/1000M SFP(COMBO)

4x100/1000/2500/10000M SFP+

PoE Port

1-4 ports support IEEE802.3af/at/bt, MAX 90W/port

5-24 ports support IEEE802.3af/at, MAX 30W/port

Management Port

1 console port

Reset Key

1

PoE Power Polarity

Af/at/bt: 12+  45+ ; 36-  78-

Af/at: 12+ 36-

Total PoE Power

Max. 400W

CPU

MIPS-34Kc 800GHz

DDR

4G DDR3

FLASH

512MBytes

RAM

512MBytes

Bandwidth

256Gbps

Packet Forwarding

95.23Mpps

MAC Address

16K

Cache

12Mbit SRAM Packet Buffer

Jumbo frame

Jumbo frame up to 12KB

VLAN Address

4K

Link Aggregation

Supports 128 trunk groups with up to 8 members per group

L3 Routing

IPV4 supports 6K; IPV6 supports 2K;

QoS Queuing

8

Transmission Distance

10BASE-T: Cat3,4,5 UTP(≤250m)

100BASE-T: Cat5 or later UTP(≤150m)

1000BASE-T: Cat6 or later UTP(≤150m)

SFP+: Support 100M/1G/10G single-mode and multi-mode optical modules, maximum distance ≤120km (depending on the optical module)

LED

PWR: Power LED

SYS: System LED

1-24: 10/100, 1000M link LED

25-28: 10Gb SFP link LED

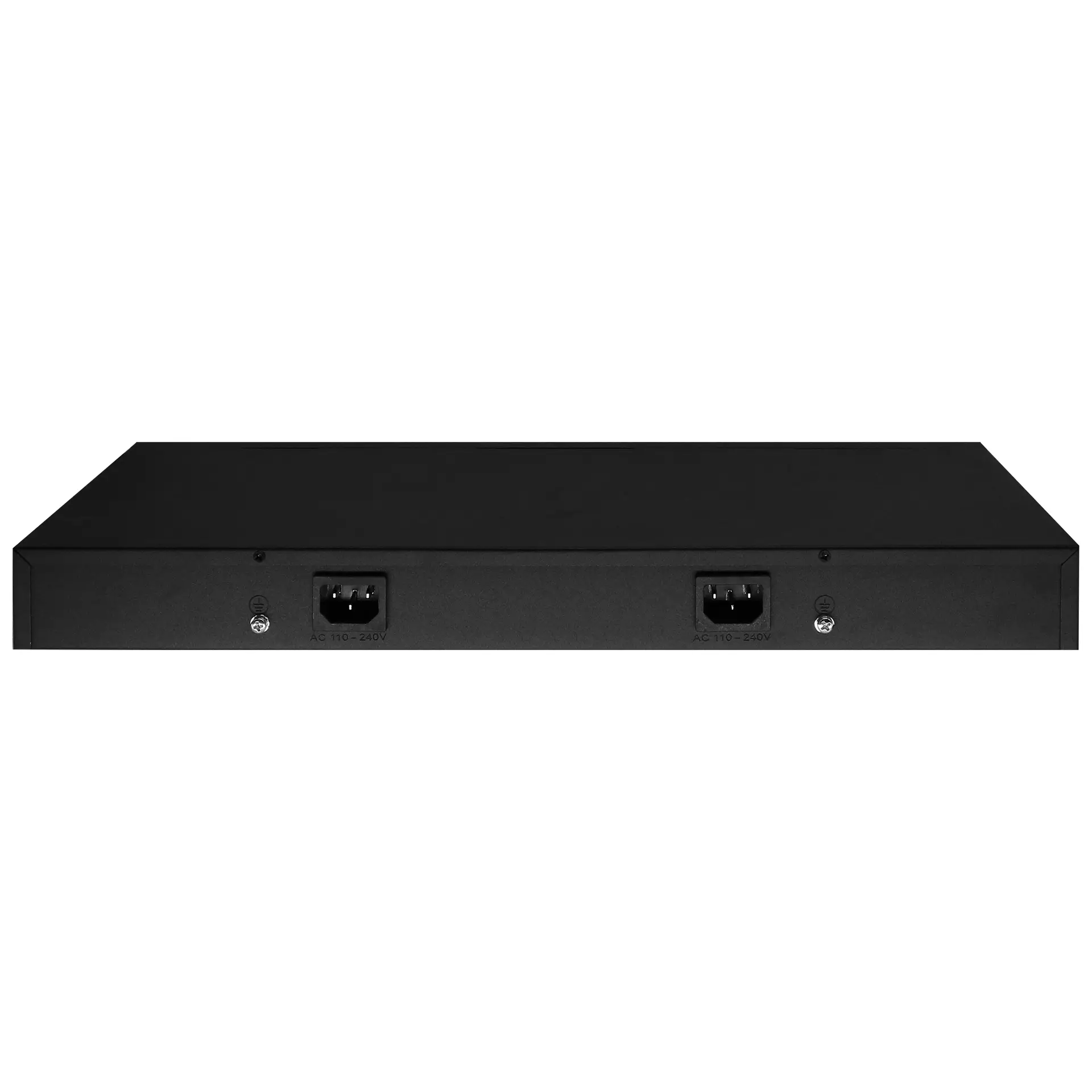

Power Supply

Built-in power supply AC: 100-240Vac 50-60Hz 5A  Max.415W

Usage Environment

Operating temperature: -10℃～55℃;

Storage temperature: -40℃～75℃;

Operating humidity: 5% ~ 90% RH non-condensing

Storage humidity: 5% ~ 95% RH non-condensing

Size(LxWxH)

440x290x45mm

515x375x95mm

N.W./G.W (kg)

3.6kg/4.4kg

Lightning/surge protection level

6KV 8/20us;

IP30

Installation

Rack-mounted (Rack lug accessory included)

Certification

3C; CE-EMC EN55032; CE-LVD EN62368;
FCC Part 15 Class B; RoHS;

Warranty

1 year for the whole machine (excluding accessories)

Software

Port Management

Enable/Disable Port
Speed, Duplex, MTU Setting
Flow-control
Port Information Check

Port Mirroring

Supports both side-way port mirroring

Port Speed Limit

Supports port-based input / output bandwidth management

Port Isolation

Support the downlink port isolation, and can communicate with the uplink port

Storm Suppression

Supports unknown unicast, multicast, unknown multicast,
broadcast type storm suppression
Storm suppression based on bandwidth regulation and storm filtering

Link Aggregation

Support static manual aggregation
Support LACP dynamic aggregation

VLAN

Access
Trunk
Hybrid
Support port, protocol, MAC-based VLAN partitioning
Support GVRP dynamic VLAN registration
Voice VLAN

MAC

Support static addition, deletion
MAC address learning limit
Support dynamic aging time setting

Spanning tree

Support STP spanning tree protocol
Supports RSTP Rapid Spanning Tree Protocol
Supports MSTP Rapid Spanning Tree Protocol

Multicast

Support static addition, deletion
IGMP-snooping
Support MLD-Snooping
Support v1/2/3 dynamic multicast monitor

DDM

Support SFP/SFP+DDM

ACL

Based on source MAC, destination MAC, protocol type, source IP, destination IP, L4 port

QoS

Based on 802.1p (COS) classification
Based on DSCP classification
Classification based on source IP, destination IP, and port number
Support SP, WRR scheduling strategy
Support flow rate limit CAR

LLDP

Support LLDP link discovery protocol

User settings

Add/delete users

Log

User login, operation, status, events

Anti-attack

DOS defense
Support CPU protection and limits the rate of sending CPU packets
ARP binding (IP, MAC, PORT binding)

Certification

Support 802.1x port authentication
Support AAA certification

Network diagnosis

Support ping, telnet, trace

System Management

Device reset, configuration save/restore, upgrade management, time setting, etc.

CLI

Support serial port command line management

SSH

Support SSHv1/2 remote management

TELNET

Support telnet remote management

WEB

Support Layer 2 settings, Layer 2 and Layer 3 monitor

SNMP

SNMP V1/V2/V3
Support trap: ColdStart, WarmStart, LinkDown, LinkUp

RMON

Support RMON v1

Other functions

Support DHCP Snooping, Option82, DHCP Server
Support dynamic ARP detection
Support TACACS+ certification
Support DNS certification
Support port security settings
Support MVR protocol
Support cable detection VCT function
Support UDLD protocol

ARP

Support static and dynamic ARP

Static Route

Support

VLAN Interface

Support VLAN interfaces

RIP

Support RIP v1/v2

OSPF

Support OSPFv2

Policy Route

Support

VRRP

Support
