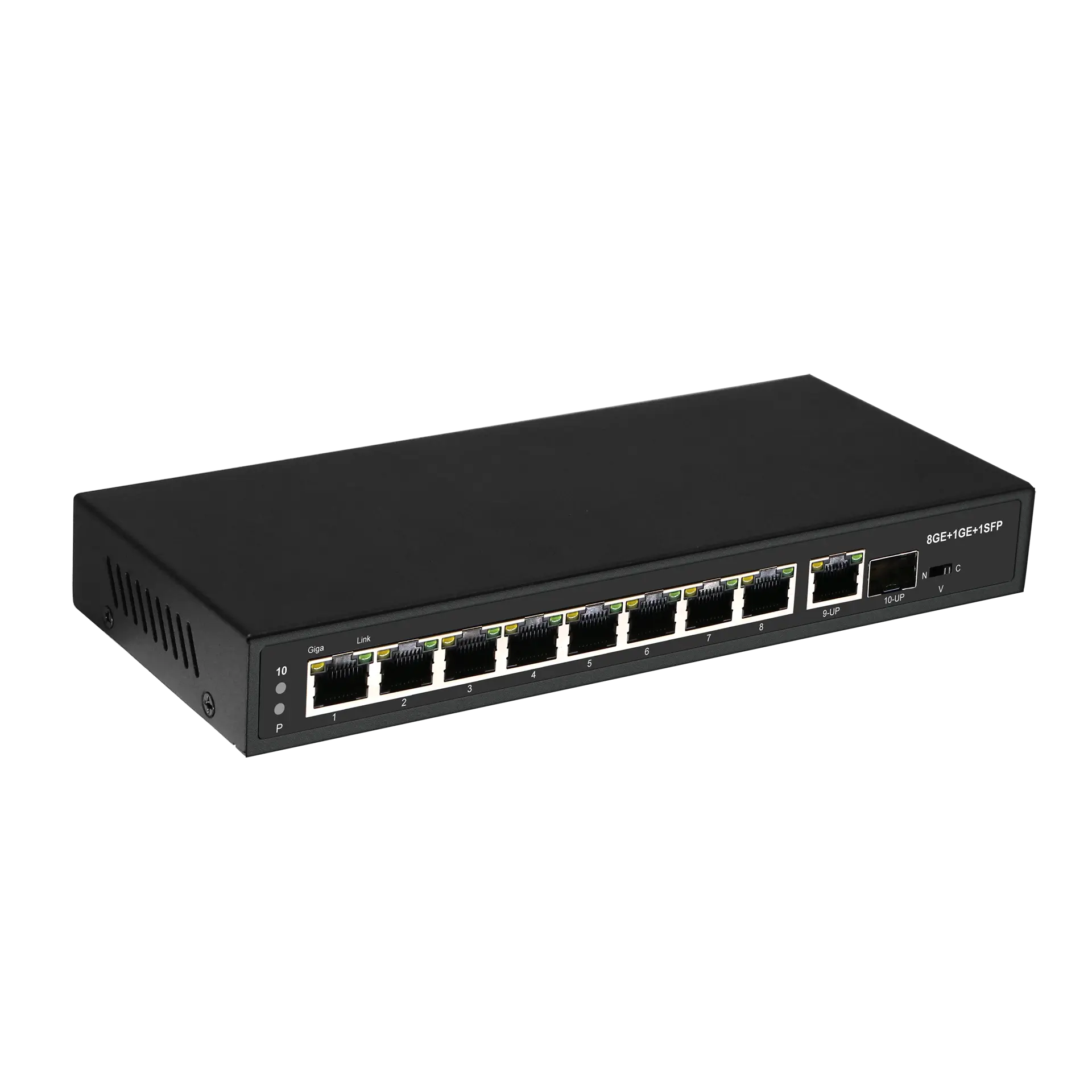

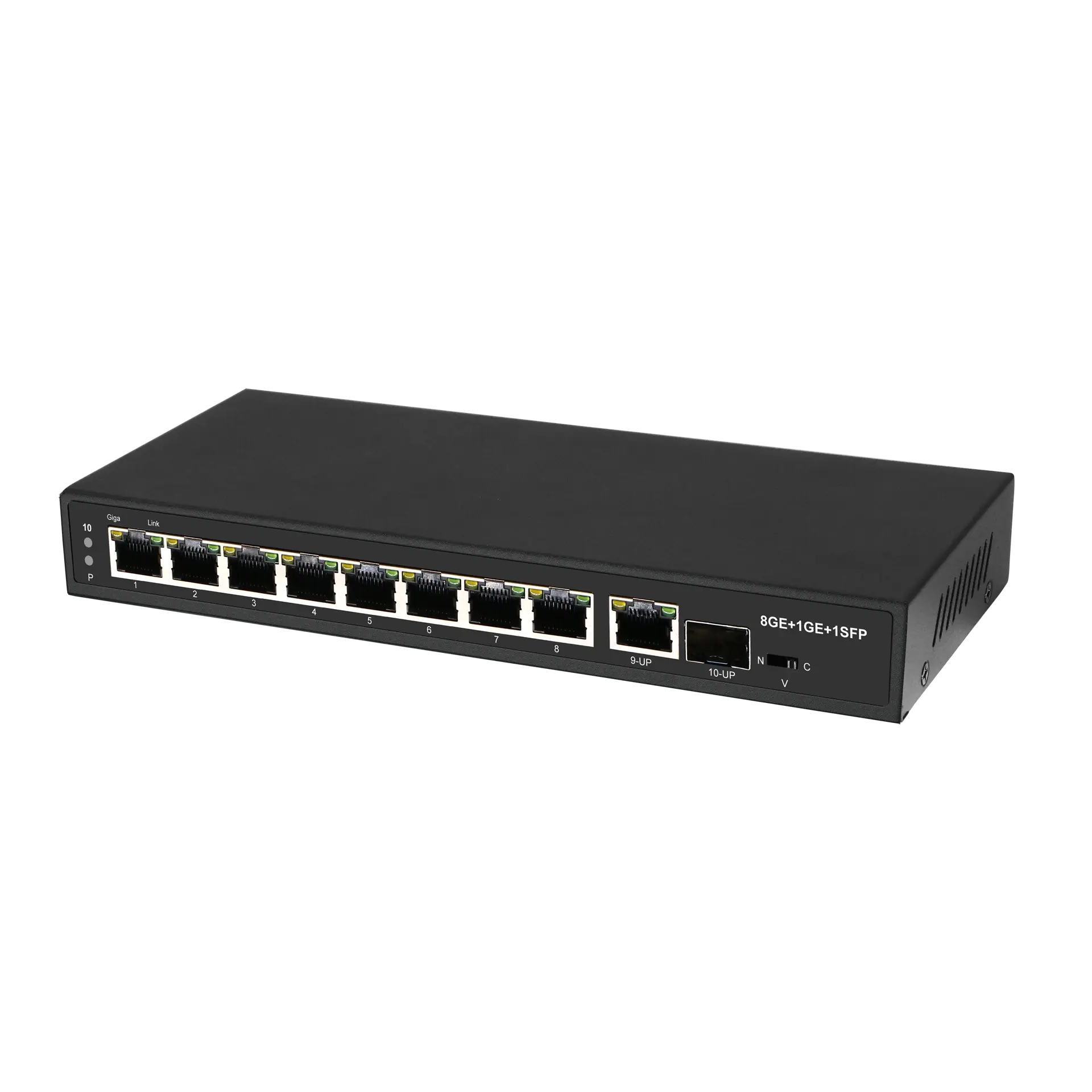

Network Port

8x10/100/1000M RJ45 port

1x10/100/1000M RJ45 port

1x1000M SFP

Network Protocol

IEEE 802.3 Ethernet Medium Access Control Protocol

IEEE 802.3i 10BASE-T Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.3ab 1000BASE-T Gigabit Ethernet

IEEE 802.3z 1000BASE-X Gigabit Fiber Optic Ethernet

IEEE 802.3x Flow Control

IEEE 802.1q VLAN Bridge Operation

Function Switch

1*: N_Standard Mode + V_Port Isolation + C_Current Control Mode

Network Port Characteristics

10/100/1000BaseT(X) auto-detect, full/half-duplex MDI/MDI-X adaptive

Forwarding Mode

Store-and-forward (full wire speed)

Bandwidth

20Gbps (non-blocking)

Packet Forwarding

14.44Mpps

Supports 9K jumbo frame transmission

MAC Address

4K

Cache

2.5M

Transmission Distance

10BASE-T: Cat3,4,5 UTP(≤250m)

100BASE-TX: Cat5 or later UTP(≤150m)

1000BASE-TX: Cat6 or later UTP(≤150m)

SFP: Support 100/1000M single-mode and multi-mode optical modules, maximum distance ≤120km (depending on the optical module).

LED

P:Power LED

10:(SFP LED)

Port:(Green=10/100M LED+Orange=1000M LED)

Input method

External Power DC：12V 1A

Operation Environment

Operating temperature: -10℃～55℃;

Storage temperature: -40℃～75℃;

Operating humidity: 5%～90% RH without condensation

Storage humidity: 5%～95% RH non-condensing

Size (L*W*H)

Product size: 210x85x28mm

Package size: 305x205x55mm

N.W./G.W (kg)

0.4kg/0.7kg

Lightning

surge protection level

3KV 8/20us;

IP30

Installation

Desktop（optional external wall hanger parts）

Certification

CE mark, commercial; CE/LVD EN60950;
FCC Part 15 Class B; RoHS;

Warranty

Whole device for 1 year(Accessories not included)
