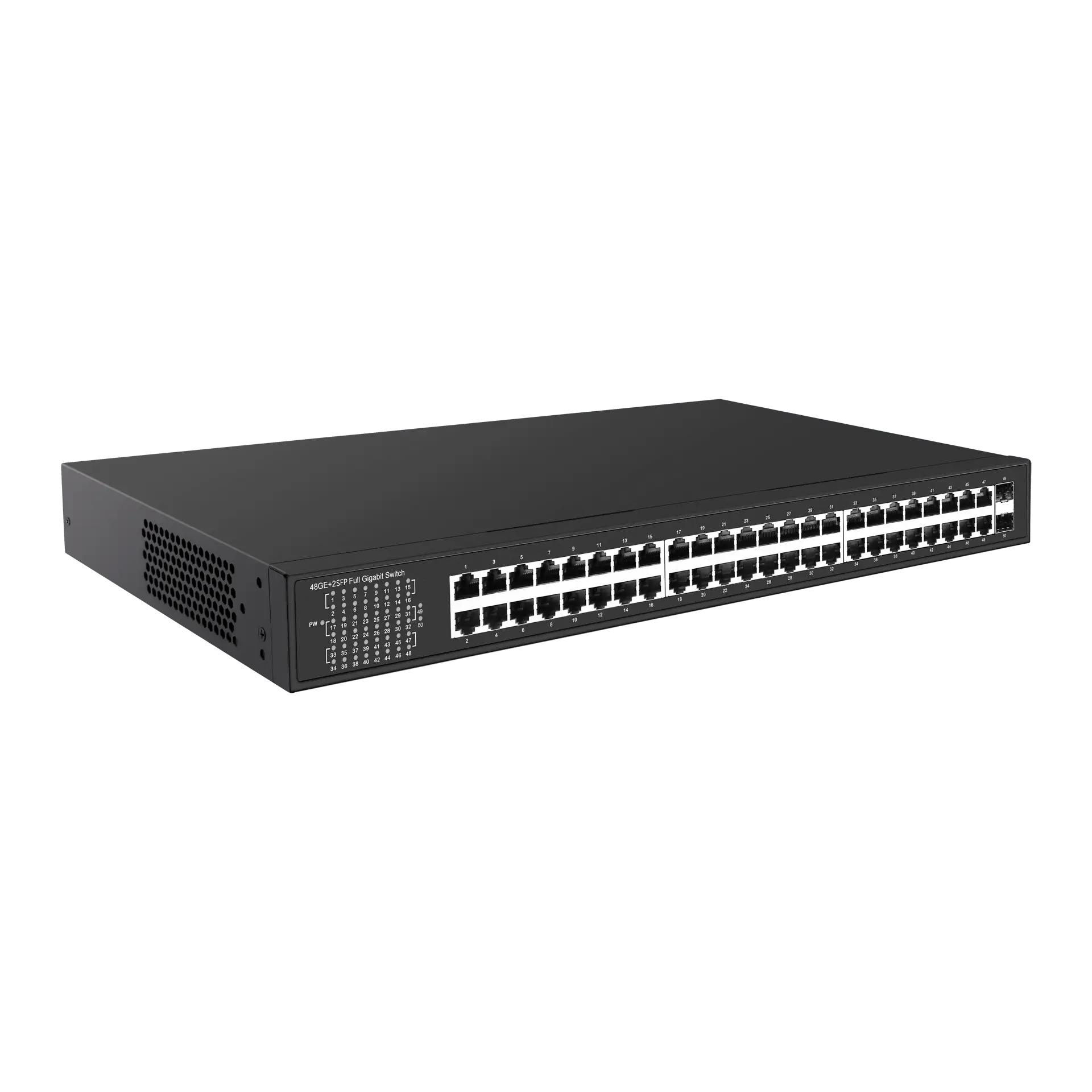

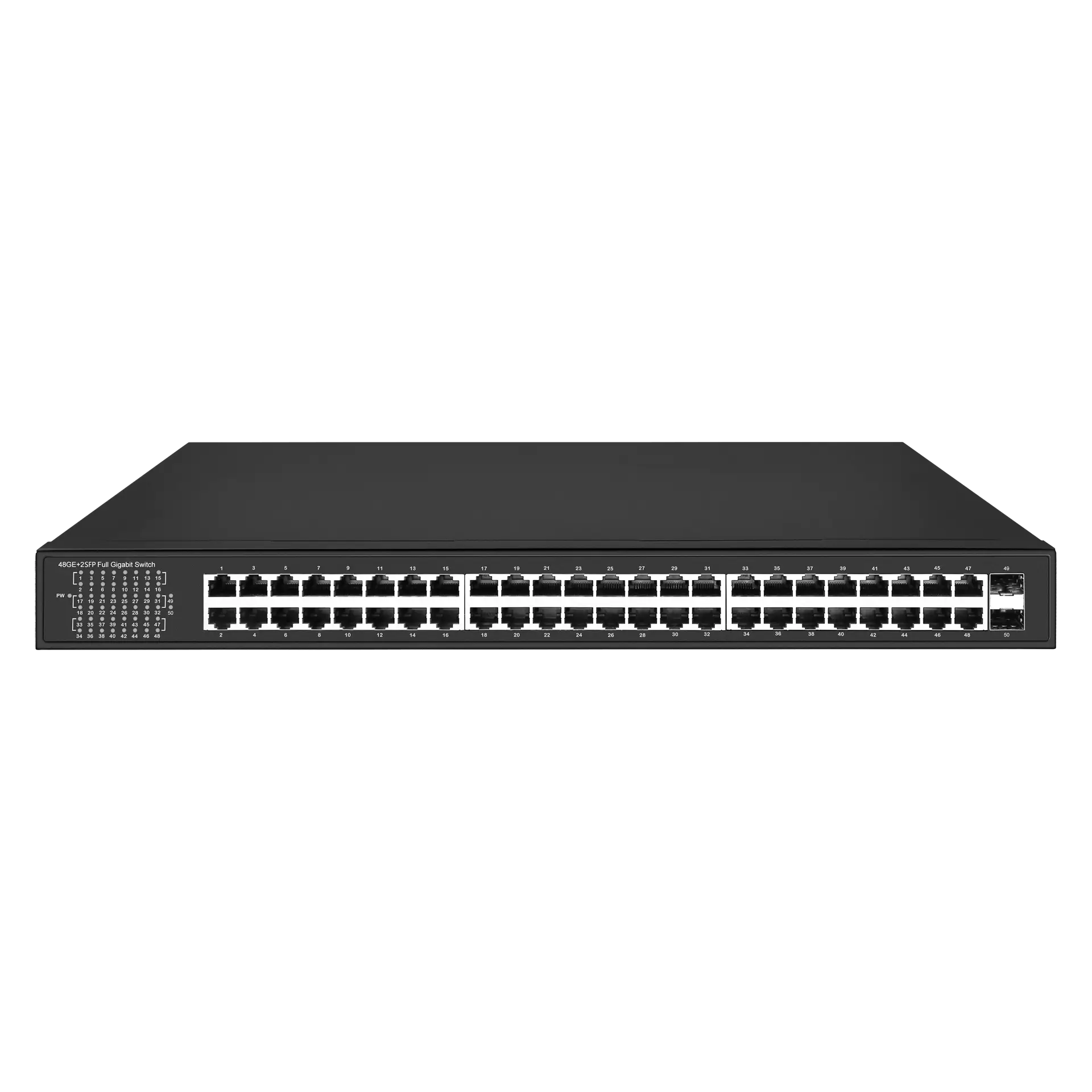

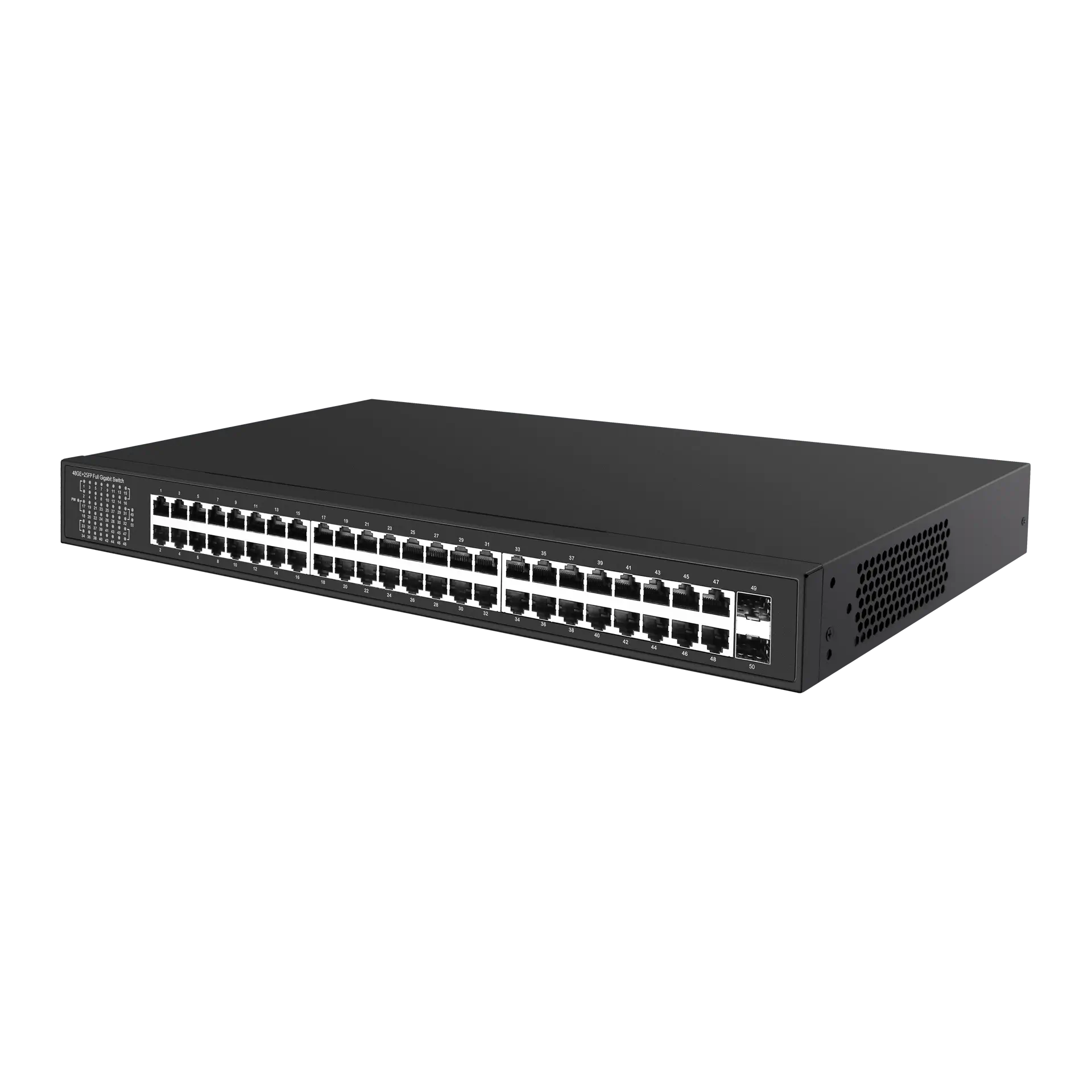

Network Port

48x10/100/1000M RJ45 port

2x1G SFP

PoE Port

1-4 ports support IEEE802.3af/at/bt, Max 90W

5-48 ports support IEEE802.3af/at, Max 30W/port

PoE Power Polarity

af/at: 12+ 36-

af/at/bt: 12+ 45+  36- 78-

Total PoE Power

Max 800W

Network Protocol

IEEE 802.3 Medium Access Control Protocol for Ethernet

IEEE 802.3i 10BASE-T Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.3ab 1000BASE-T Gigabit Ethernet

Network Port Characteristics

10/100/1000BaseT(X) auto-detection, full/half duplex MDI/MDI-X adaptive

Forwarding Mode

Store-and-forward (full wire speed)

Bandwidth

100Gbps

Packet Forwarding

74.40Mpps

MAC Address

8K

Cache

4.1M

Transmission Distance

10BASE-T: Cat3,4,5 UTP(≤250m)

100BASE-T: Cat5 or later UTP(≤150m)

1000BASE-T: Cat6 or later UTP(≤150m)

SFP: Support 100/1000M single-mode multi-mode optical module, maximum distance ≤ 120km (depending on the optical module )

LED

PW:Power indicator

Ports 1-48: 1000M link LED (orange), link LED (green)

Ports 49-50:Optical port link LED

Input method

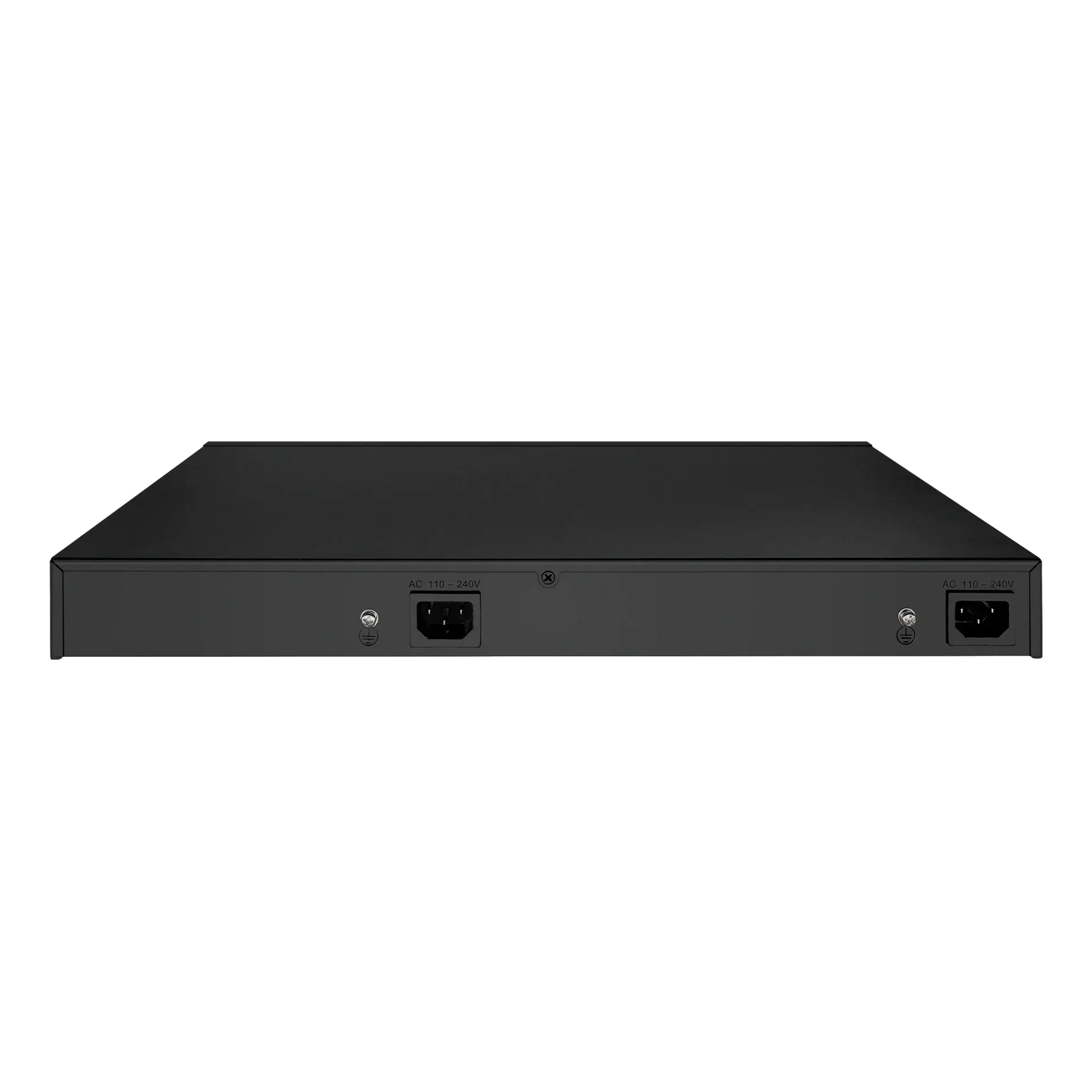

Built-in power supply AC: 100-240Vac 50-60Hz 9.6A Max 800W

Usage Environment

Operating temperature: -10℃～55℃;

Storage temperature: -40℃ ~ 75℃;

Operating humidity: 5% ~ 90% RH non-condensing

Storage humidity: 5% ~ 95% RH non-condensing

Size (LxWxH)

Product size: 440x290x45mm

Package size: 515x375x95mm

N.W./G.W (kg)

4.4kg/5.2kg

Lightning/surge protection level

6KV 8/20us;

IP30

Installation

Rackmount (rack lug accessory included)

Certification

3C；CE-EMC EN55032; CE-LVD EN62368;
FCC Part 15 Class B; RoHS;

Warranty

1 year for the whole machine (excluding accessories)
