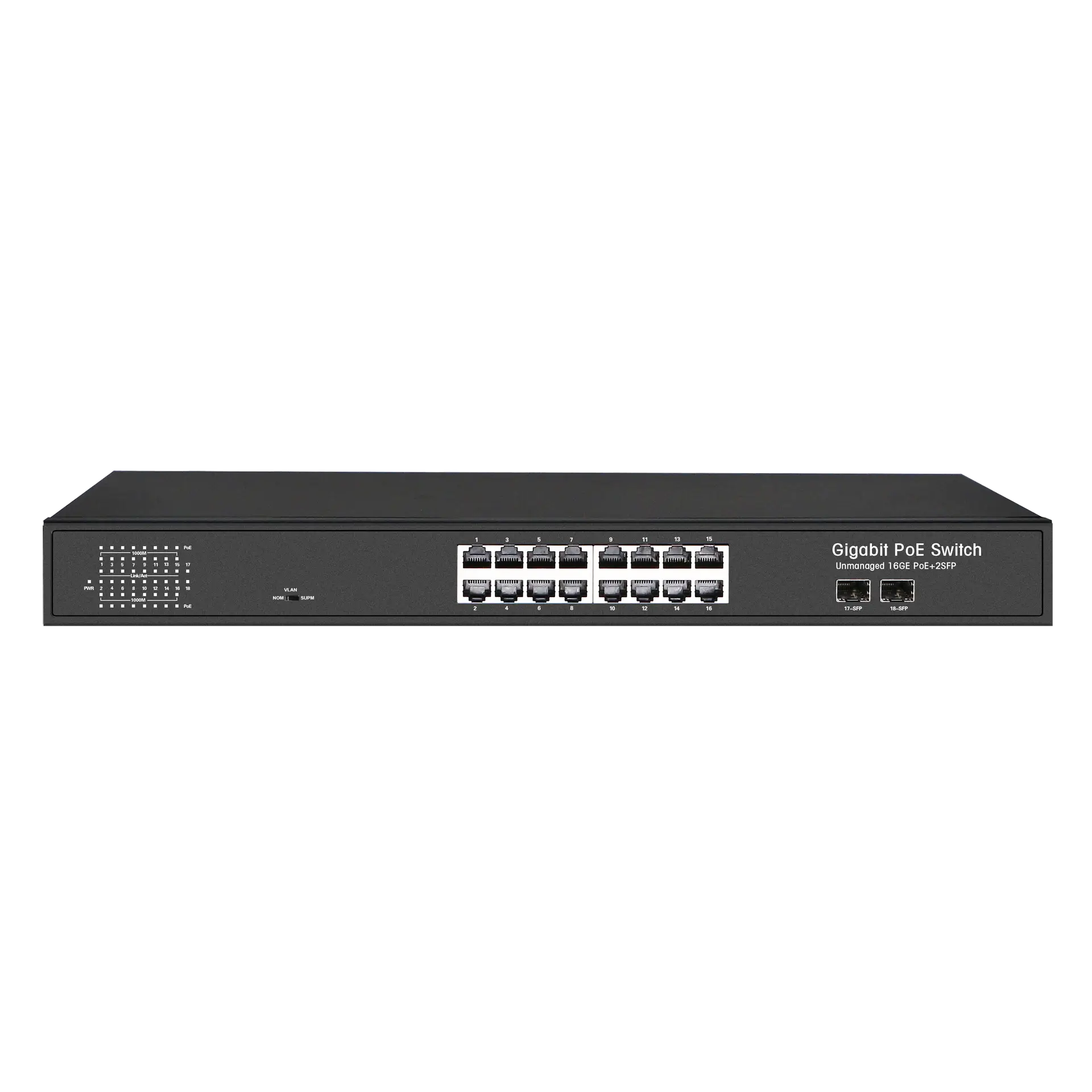

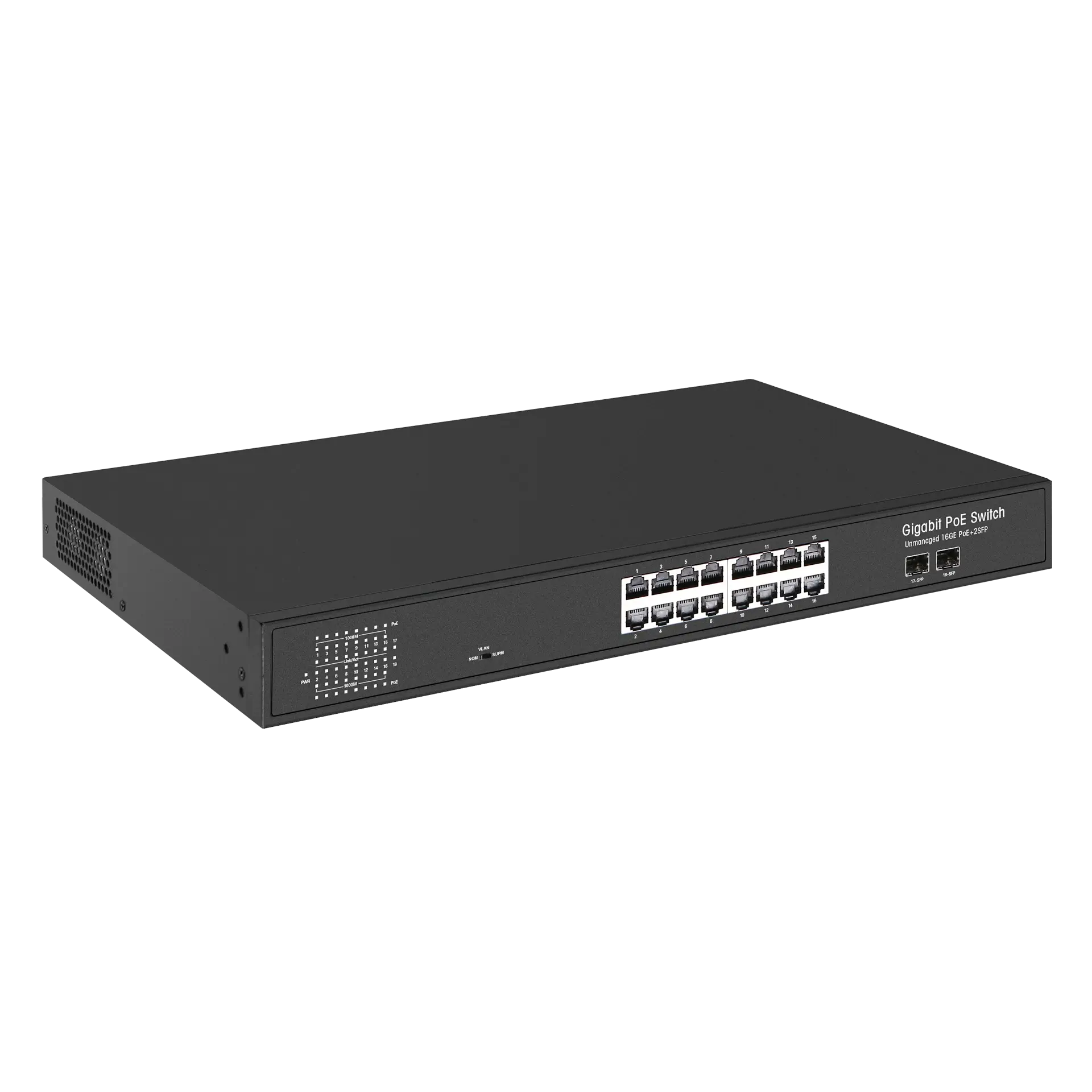

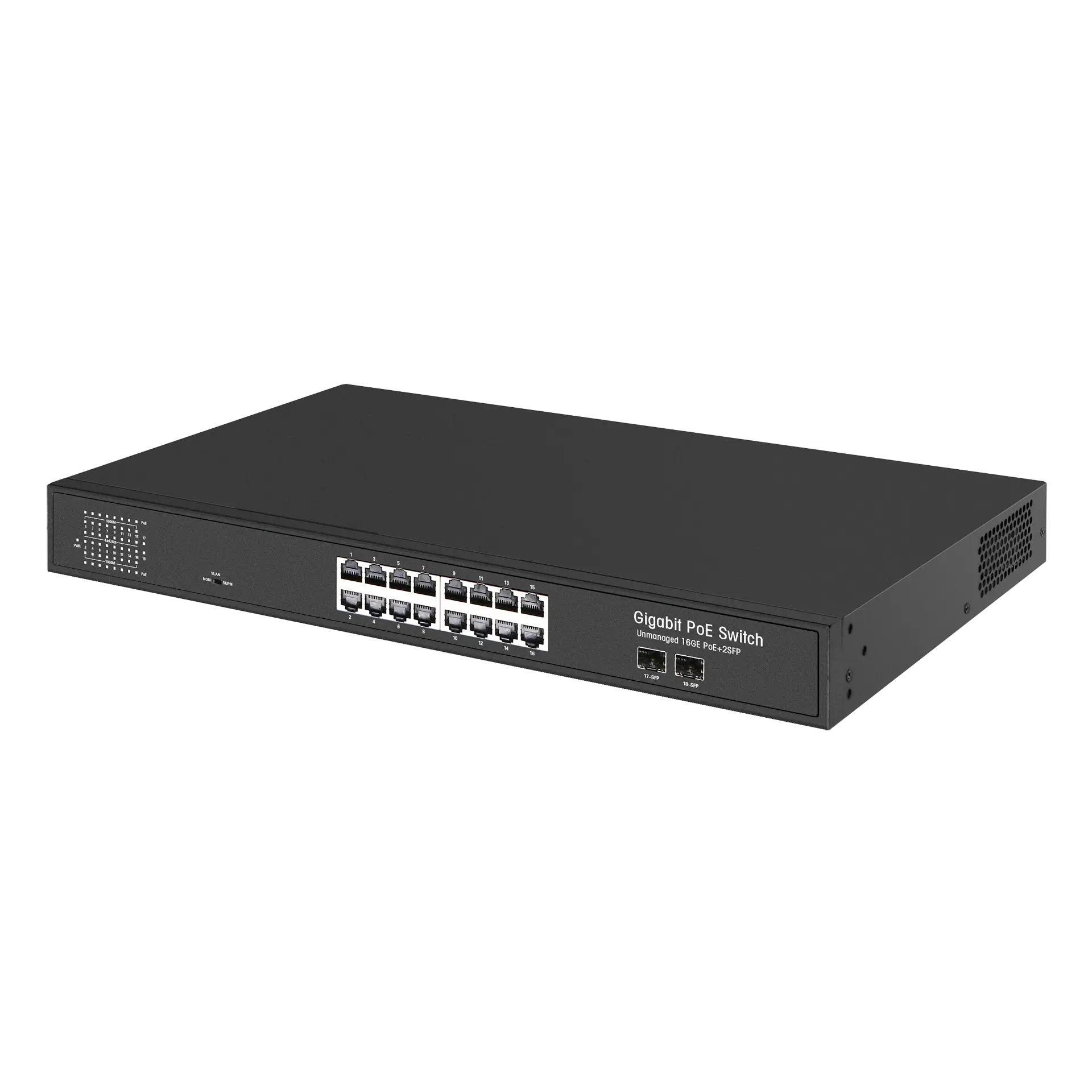

Fixed Port

16x10/100/1000M RJ45 port

2x1000M SFP

PoE Port

1-2 ports support IEEE802.3af/at/poe++/bt, MAX 90W

3-16 ports support IEEE802.3af/at, MAX 30W/port

PoE Power Polarity

af/at: 12+ 36-

af/at/poe++/bt: 12+ 45+  36- 78-

Total PoE Power

MAX 300W

Function Switch

N: Standard shared mode

V: Port isolation mode

C: Flow control mode

Bandwidth

56Gbps

Packet Forwarding

41.67Mpps

MAC Address

8K

Cache

4.1M

Transmission Distance

10BASE-T: Cat3,4,5 UTP(≤250m)

100BASE-TX: Cat5 or later UTP(≤150m)

1000BASE-TX: Cat6 or later UTP(≤150m)

SFP: Support 1000M single-mode multimode optical module, maximum distance ≤ 120km (depending on the optical module)

LED

PWR: Power LED (green))

1-16:10/100, 1000M network connection LED (green)

17-18:SFP optical port connection LED (green)

PoE port:PoE LED (orange)

Input Method

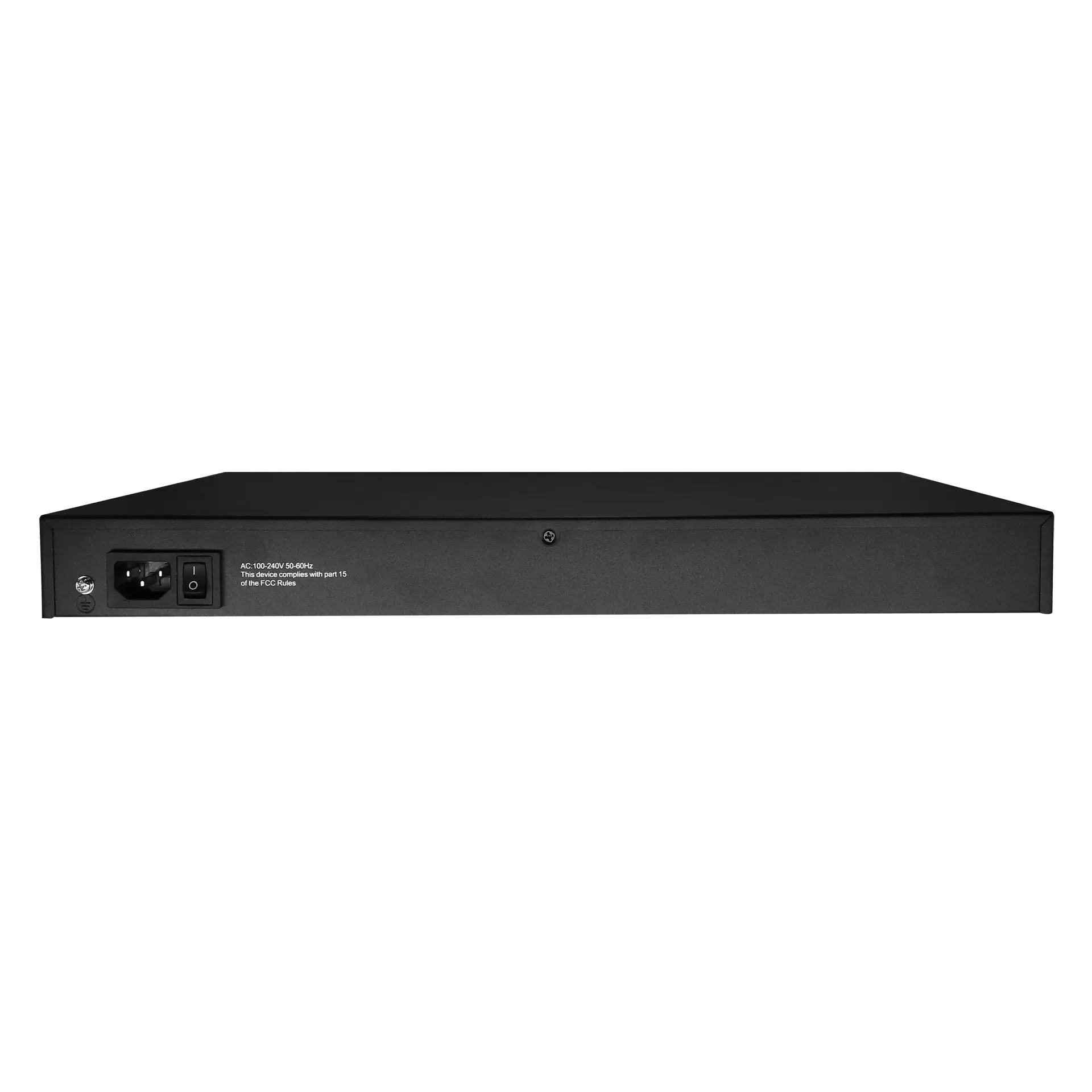

Built-in power supply AC: 100-240Vac 50-60Hz 3.8A Max. 315W

Usage Environment

Operating temperature: -10℃～55℃;

Storage temperature: -40℃～75℃;

Operating humidity: 5%～90% RH non-condensing

Storage humidity: 5%～95% RH non-condensing

Size (LxWxH)

Product size: 440x290x45mm

Package size: 515x375x95mm

N.W./G.W (kg)

3.3kg/4.0kg

Lightning/surge protection level

3KV 8/20us;

IP30

Installation

Rack-mount(optional machine hanger spare parts)

Certification

CE mark, commercial; CE/LVD EN60950;
FCC Part 15 Class B; RoHS;

Warranty

Whole device for 1 year(Accessories not included)
